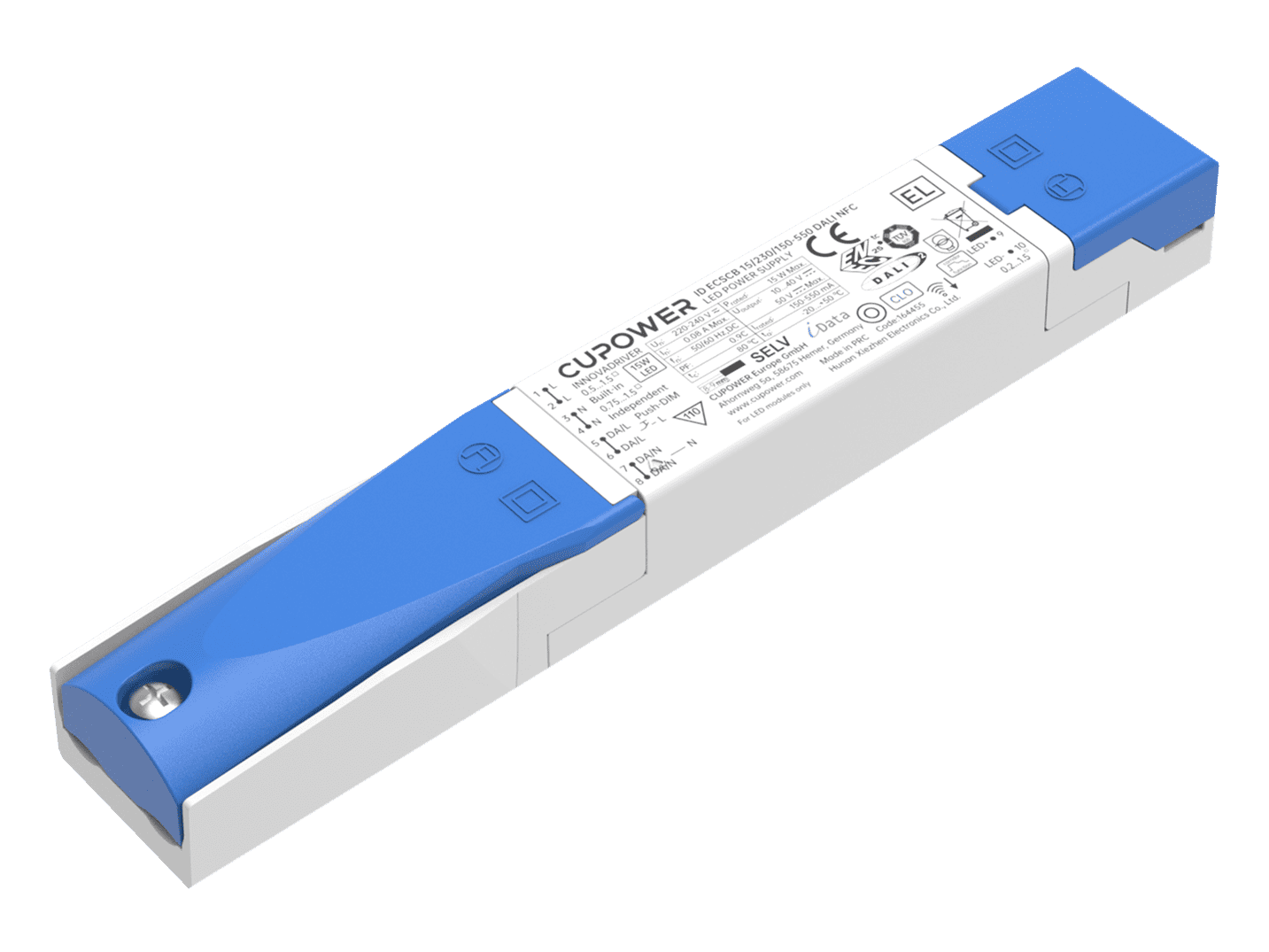

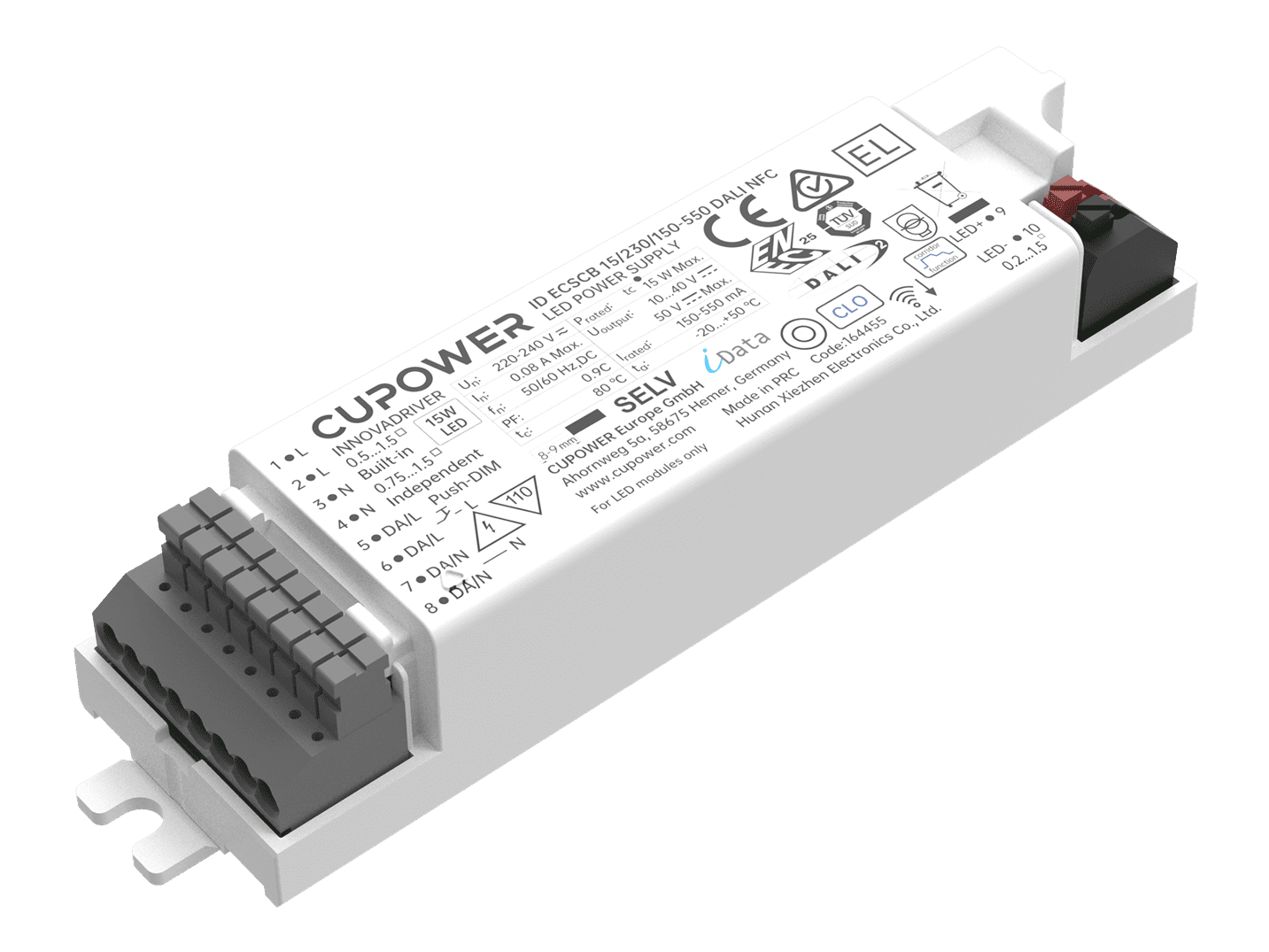

164455 ID ECSCB 15/230/150-550 DALI NFC

< Back

L112 x W29 x H21 mm

WT: 0.059 kg

  • 新2
Questions Order a Sample
Product description
Isolated adjustable power LED driver
Supports DALI-2, push DIM control
Current adjustment via NFC
Supports i-Data function (DALI part 251, 252, 253)
Output current 150…550 mA
Max. output power 15 W
DC emergency
Flicker-free, dimming range 1%...100% (amplitude dimming)
Current output default value 100%
For luminaires with protection class l, ll
Anti-glow
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.08 A @ 230 Vac & 0.08 A @ 230 Vdc
THD:< 10%
Inrush current:lnrush current lpeak: 9.5 A, lnrush current Twidth: 155 us
MCB Quantity B10A:72
MCB Quantity C10A:106
MCB Quantity B16A:115
MCB Quantity C16A:170
Output current tolerance:

± 5%

Output voltage max.≤ 50 Vdc
Ripple:5% (ripple = peak/average total 100 Hz)
Standby power consumption:< 0.5 W
Output PstLM:≤1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2, Push Dimming
Dimming range:1％...100％
Adjustable output current:NFC
Withstand voltage:

I/p-O/p: 3 kVac,< 5 mA 60 sec, I/p-Da: 1.5 kVac, < 5 mA 60 sec, O/p-Da: 1.5 kVac, < 5 mA 60 sec

Product nameOutput currentInput


               voltage		Output

               voltage		Efficiency
               @full load		Current accuracyPower factor
ID ECSCB 15/230/150-550 DALI NFC150...550 mA

220...240 Vac

220...240 Vdc

10...40 V87%± 5%0.9


Operating temperature-20…+50°C
Storage temperature:-25…+85°C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc < 80°C: 50,000 hrs @ 230 Vac (0.2% / 1,000 h failure rate)
Maximum Tc temperature:85°C
Pcs./ carton32 pcs
Carton size174 x 117 x 137 mm
Gross weight2.04 kg
