167876 ID ECSCB 40/230/150-1050 D4i NFC

< Back

L135 x W56.5 x H21 mm

WT: 0.13 kg

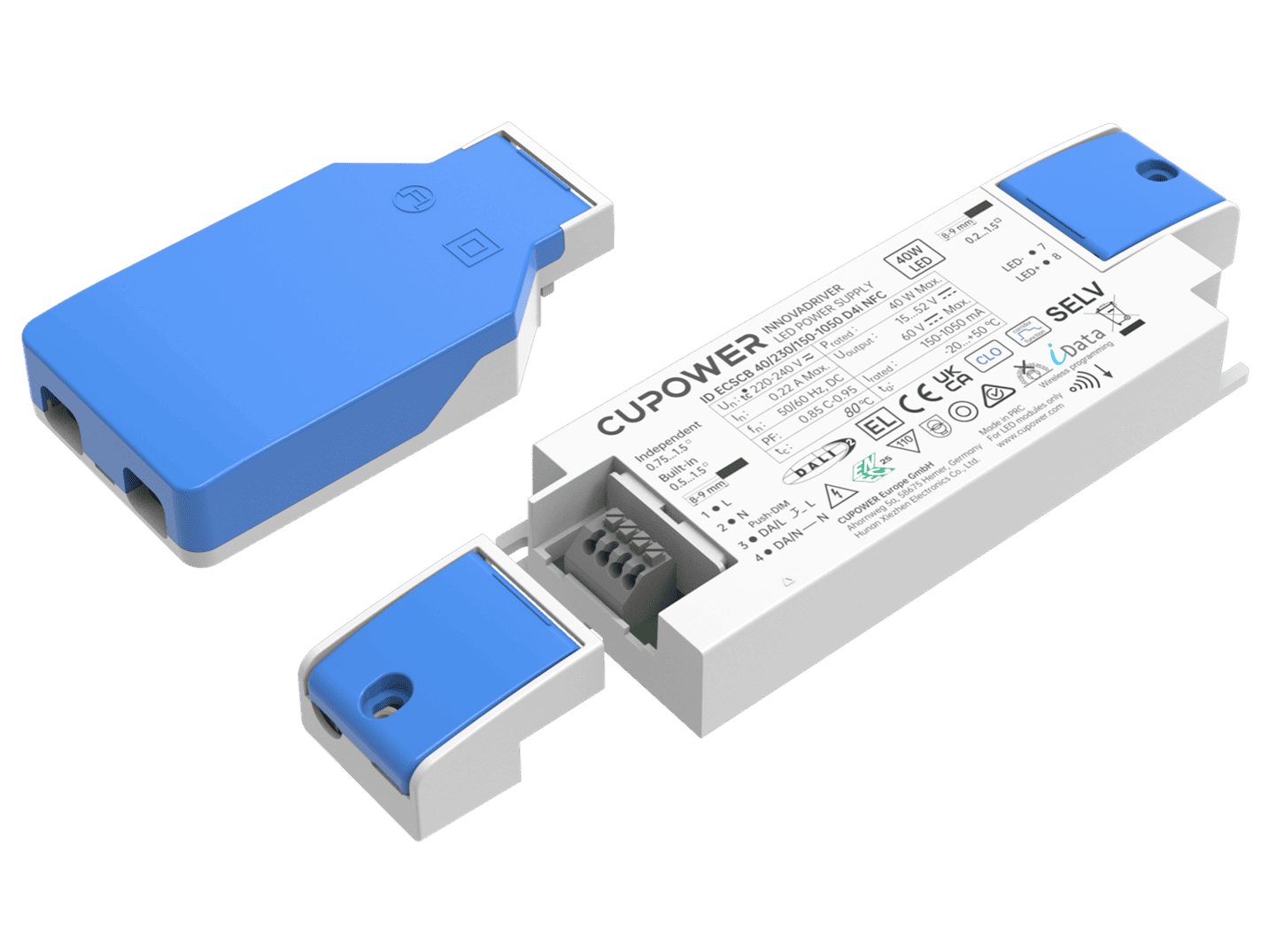

  • 新ID ECSCB 40 230 150-1050 D4i NFC-无端盖
Questions Order a Sample
Product description
Built-in isolated adjustable power LED driver
Supports DALI-2 D4i (part 250, 251, 252, 253)
Current adjustment via NFC
Flicker free LED driver
Output current 150…1050 mA
Max. output power 40 W
Constant lumen output (CLO)
DC emergency
Current output default value 600 mA
For luminaires with protection class l, ll
5 years warranty
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.22 A @ 230 Vac & 0.22 A @ 230 Vdc
THD:< 10%
Inrush current [Aµs]:24 A , 150 μs
MCB Quantity B10A:29
MCB Quantity C10A:41
MCB Quantity B16A:47
MCB Quantity C16A:66
Output current tolerance:± 5% at rated input voltage range
Output voltage max.:60 V
Ripple:≤ 3%
Standby power consumption:< 0.3 W
Output PstLM:≤ 1
Output SVM:≤ 0.4
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:NFC
Withstand voltage:

I/P-O/P: 3.75 kVac, < 5 mA 60 sec, I/P-DA: 1.5 kVac, < 5 mA 60 sec

O/P-DA: 1.5 kVac, < 5 mA 60 sec


Product nameOutput currentInput
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
ID ECSCB 40/230/150-1050 D4i NFC

150...1050 mA

220...240 Vac

220...240 Vdc

   15...52 V92%± 5%0.9


Operating temperature:-40...+50℃
Storage temperature:-25...+85℃
Working humidity:10%...90%
Store humidity:5%...95%
Driver lifetime:at Tc 80℃: 50,000 hrs; at Tc 70℃: 100,000 hrs @ 230 Vac
Maximum Tc temperature:80℃
Pcs./ carton:24 Pcs
Carton size:280 x 179.5 x 114 mm
Gross weight:3,72 kg
