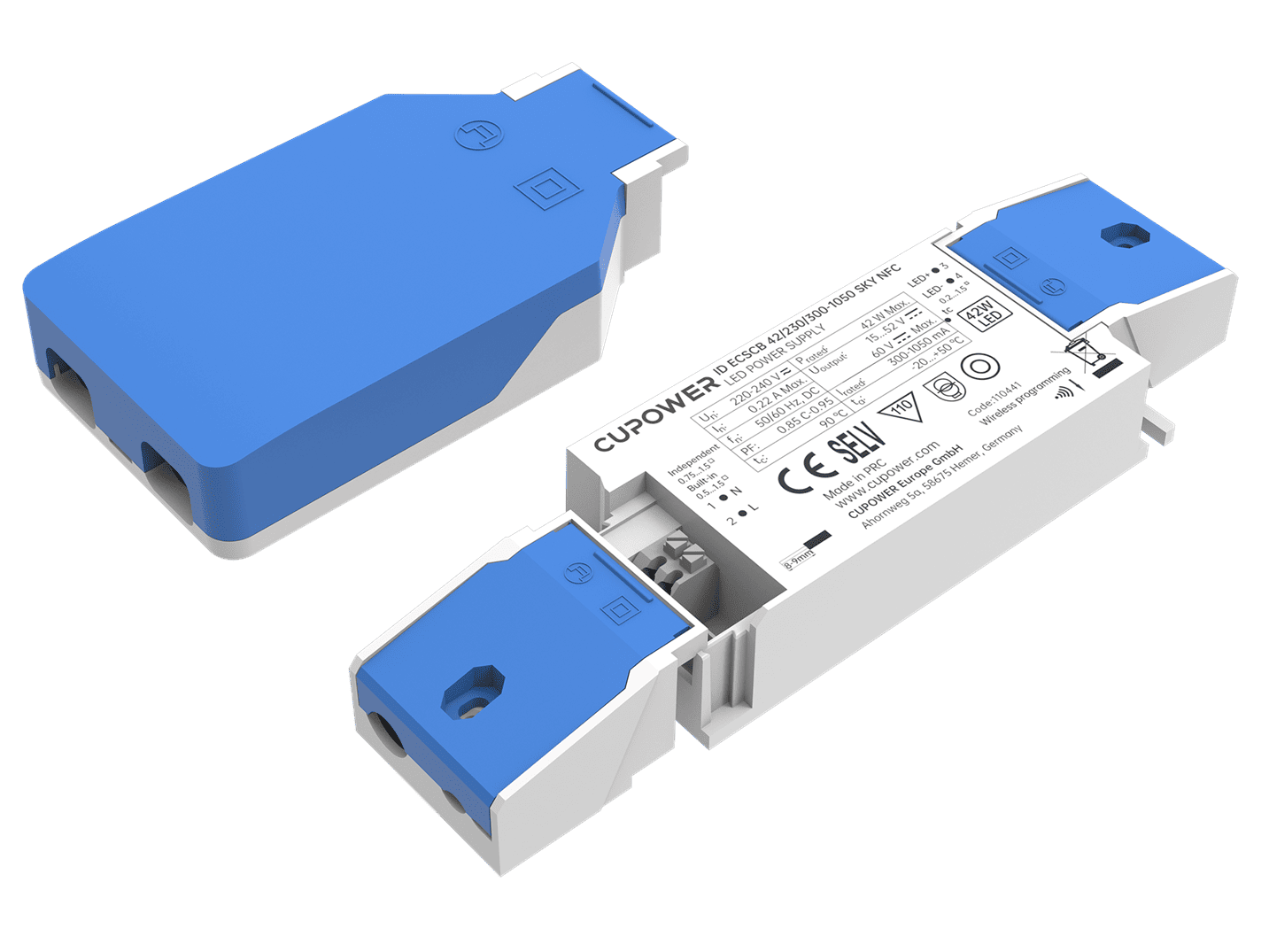

110441 ID ECSCB 42/230/300-1050 SKY NFC

< Back

L97 x W43 x H21.4 mm

WT: 0.1 kg

Product description

Isolated adjustable power LED driver
Constant lumen output (CLO)
Current adjustment via NFC
Output current 300 … 1050 mA
Max. output power 42 W
DC emergency
Flicker-free, dimming range 1 ... 100 % (amplitude dimming)
Current output default value 300 mA
For luminaires with protection class l, ll
Packing unit programming: configure a large number of drivers in parallel via NFC

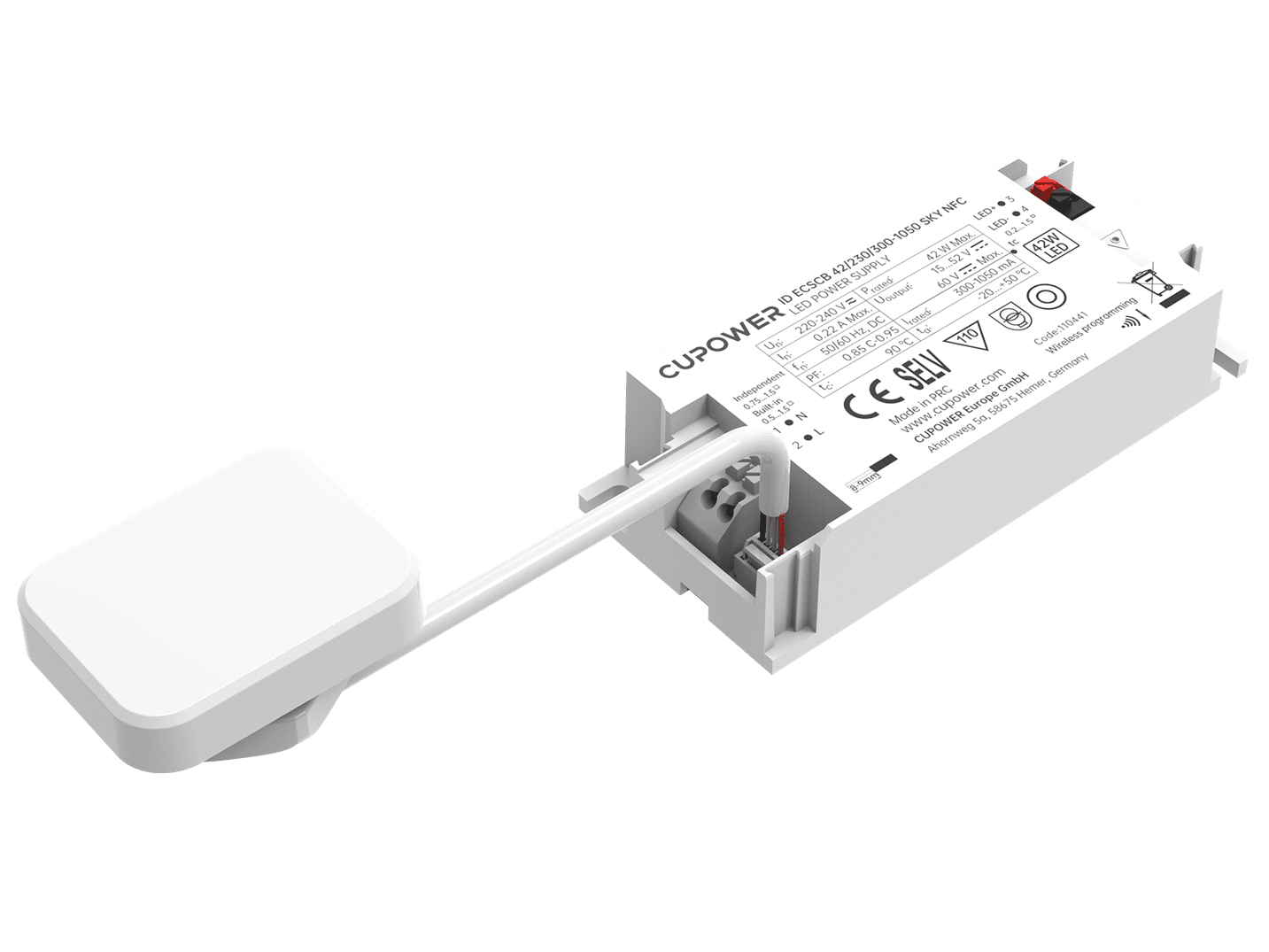

External SkyLink antenna required for high-quality signal transmission; sold separately
SkyLink antenna is easy to install via simple single-hole mounting and connection to the driver via pre-assembled plug-in connectors

Swipe for more

Rated input voltage range:	220 ... 240 Vac
Max.input voltage range:	198 ... 264 Vac
DC Rated input voltage range:	220 ... 240 Vdc
DC operation voltage range:	176 ... 276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.24 A@ 230 Vac & 0.24 A @ 230 Vdc
THD:	≤ 10 %
Inrush current [Aµs]:	15.6 A, 248 μs
MCB Quantity B10A:	16
MCB Quantity C10A:	27
MCB Quantity B16A:	26
MCB Quantity C16A:	44
Output current tolerance:	± 5 %
Output voltage max.:	60 V
Ripple:	5 %
Standby power consumption:	< 0.3 W
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	Bluetooth dimming (Mymesh mesh, Casambi, Meshle mesh)
Dimming range:	1 ... 100 %
Adjustable output current:	NFC
Withstand voltage:	I/p-O/p: 3 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ECSCB 42/230/300-1050 SKY NFC

300 ... 1050 mA

220 ... 240 Vac

220 ... 240 Vdc

15 ... 52 V

92 %

± 5 %

0.9

Operating temperature:	-20 ... +50 ℃
Storage temperature:	-25 ... +85 ℃
Working humidity:	10 ... 90 %
Store humidity:	5 ... 95 %
Driver lifetime:	at Tc 85 °C: 50,000 h @ 230 Vac (0.2 % / 1,000 h failure rate)
Maximum Tc temperature:	90 ℃
