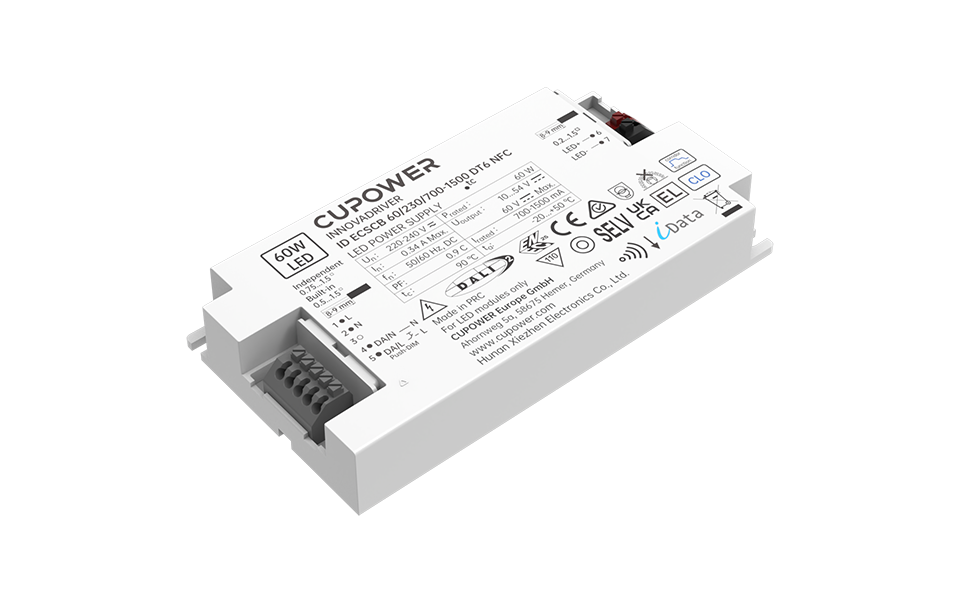

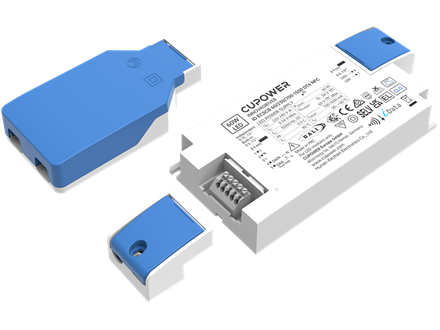

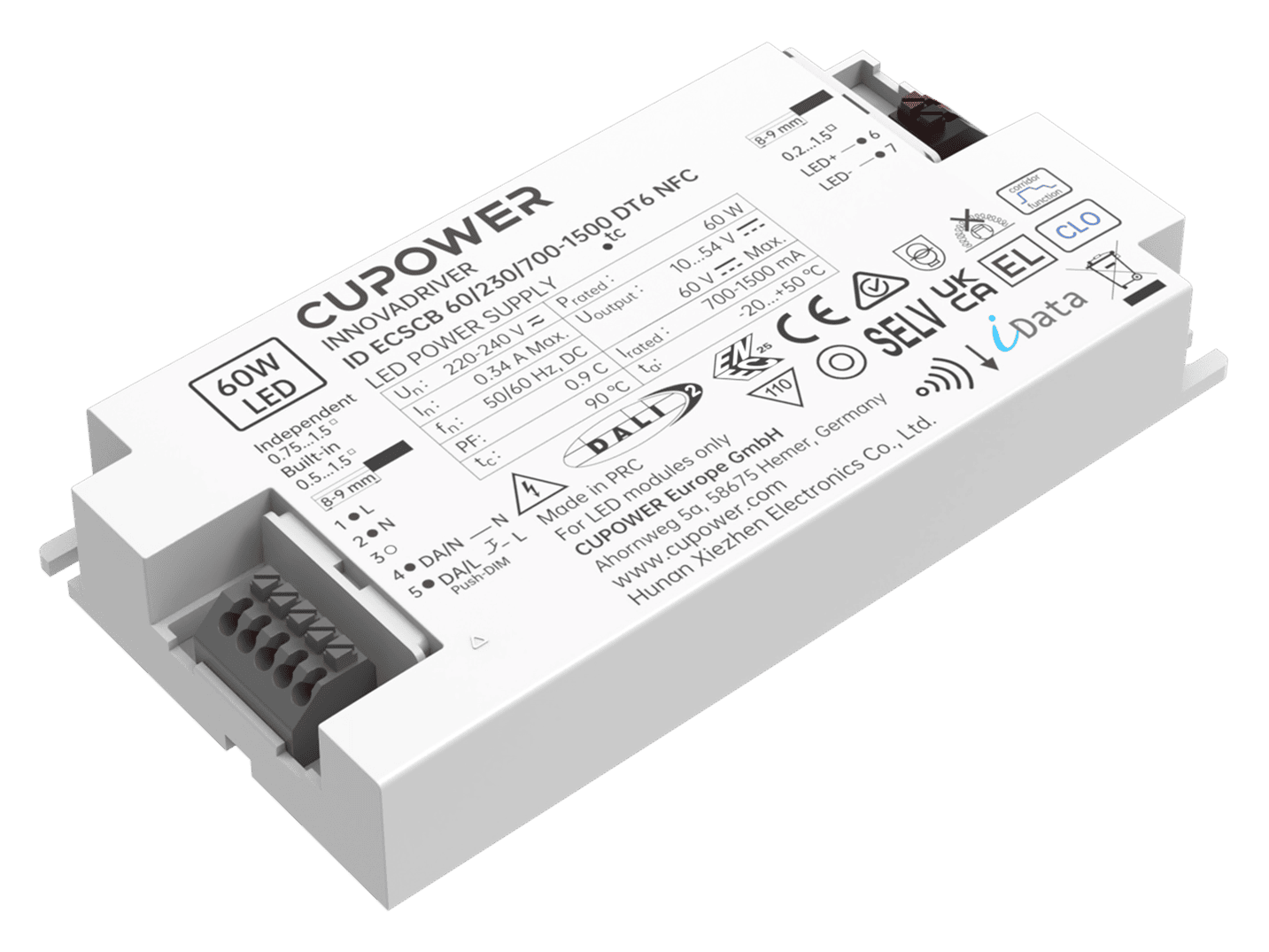

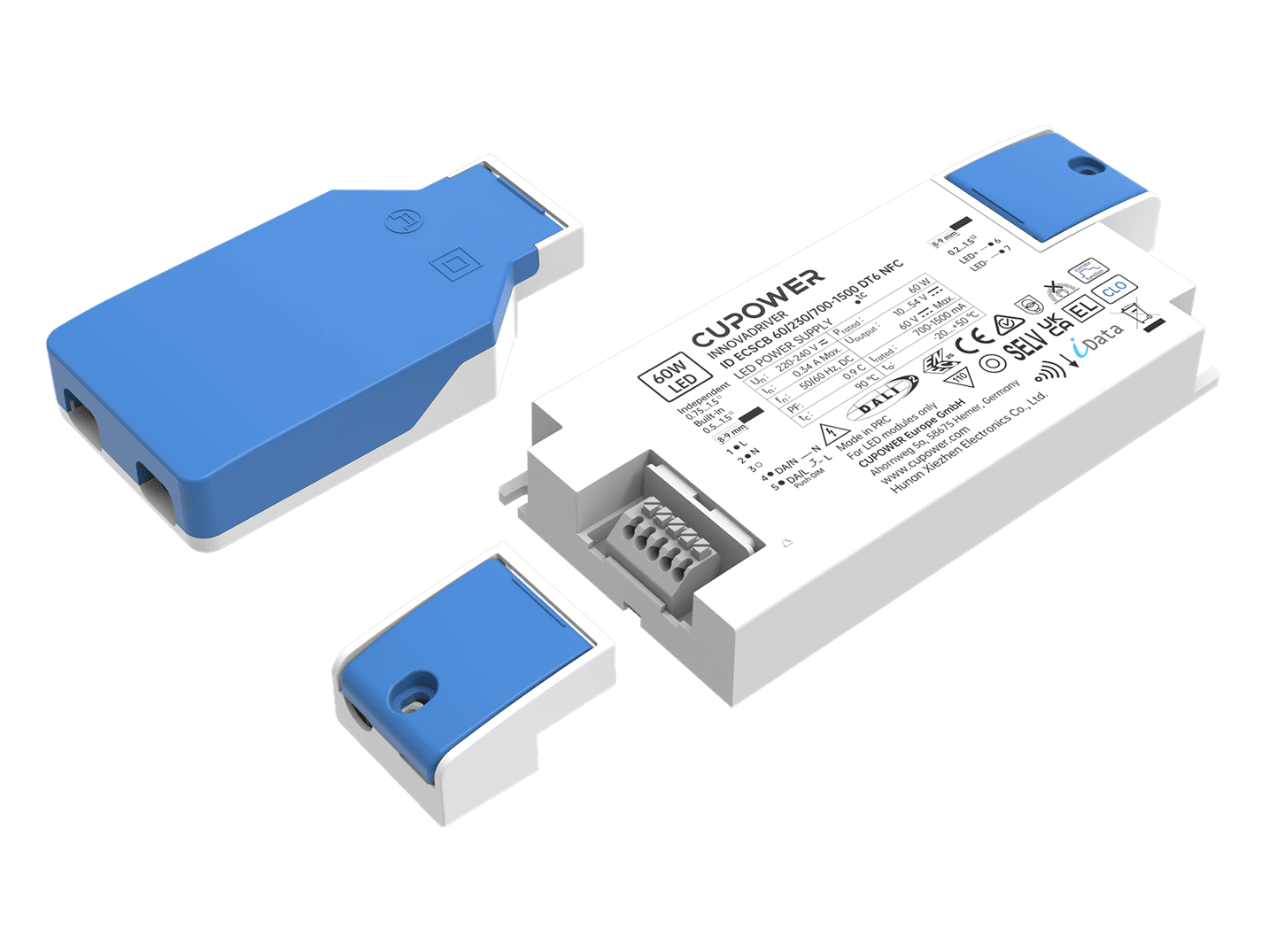

168941 ID ECSCB 60/230/700-1500 DT6 NFC

< Back

L135 x W70 x H21 mm

WT: 0.22 kg

  • 1747465158851806
Questions Order a Sample
Product description
Isolated adjustable power LED driver
Supports DALI-2, push DIM control
Current adjustment via NFC
Supports i-Data function (DALI part 251, 252, 253)
Output current 700 … 1500 mA
Max. output power 60 W
DC emergency
Flicker-free
For luminaires with IEC protection class l, ll
Anti-glow
Swipe for more
Rated input voltage range:220 ... 240 Vac
Max.input voltage range:198 ... 264 Vac
Rated input current DC range:220 ... 240 Vdc
DC operation voltage range:176 … 276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.34 A @ 230 Vac & 0.34 A @ 230 Vdc
THD:< 10 %
Inrush current:Inrush current lpeak: 8.04 A, Inrush current Twidth: 50 μs
MCB quantity B10A:27
MCB quantity C10A:27
MCB quantity B16A:44
MCB quantity C16A:44
Output current tolerance:± 5 %
Output voltage max:60 Vdc
Ripple:5 %
Standby power consumption:< 0.3 W @ 230 V / 50 Hz
Output PstLM:

≤ 1 in entire operating window @ at rated input voltage performance range

Output SVM:

≤ 0.4 in entire operating window @ at rated input voltage performance range

Dimming mode:DALI-2
Dimming range:1 ... 100 %
Adjustable output current:700 … 1500 mA
Withstand voltage:

I/p-O/p: 3 kVac, < 5 mA 60 sec

I/p-DA: 1.5 kVac, < 5 mA 60 sec

O/p-DA: 1.5 kVac, < 5 mA 60 sec

Product nameOutput
      current		Input
      voltage		Output
      voltage		Efficiency        @full loadCurrent accuracyPower factor

ID ECSCB 60/230/700-1500 DT6 NFC

700 ... 1500 mA

220 ... 240 Vac

220 ... 240 Vdc

10 ... 54 Vdc

90 %

(@ 54 V 1100 mA)


± 5 %

0.9

(@ 26 ... 60 W

Operating temperature:-20 … +50 °C
Storage temperature:-25 … +85 °C
Working humidity:10 … 90 %
Store humidity:5 … 95 %
Driver lifetime:at Tc 80 ℃: 50,000 h @ 230 Vac

(0.2 % / 1,000 h failure rate)

Maximum Tc temperature:90 ℃
Pcs./ carton:24 pcs
Carton size:280 x 220 x 114 mm
Gross weight:5.88 kg
