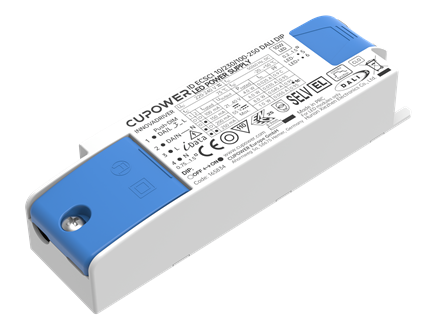

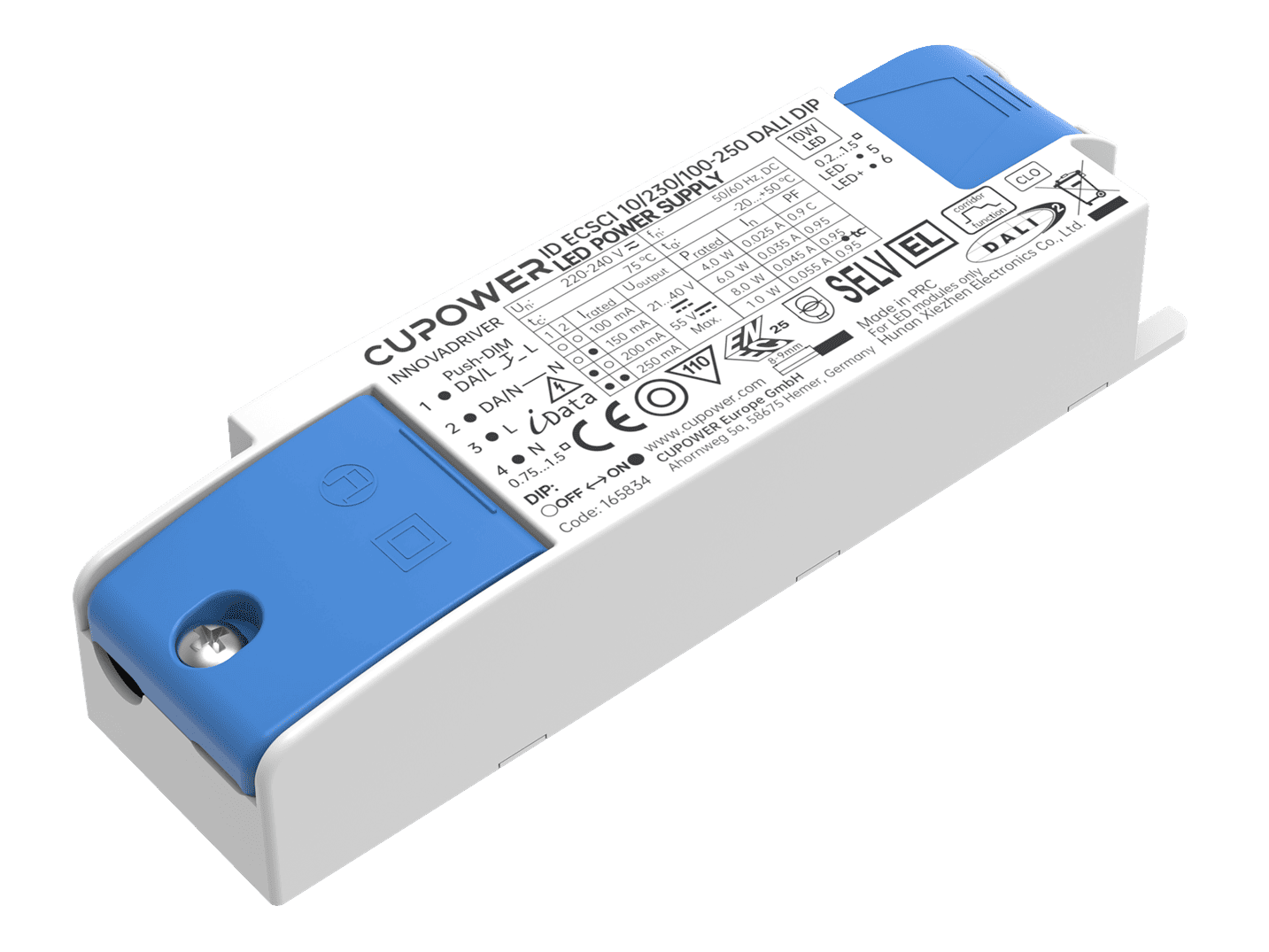

165834 ID ECSCI 10/230/100-250 DALI DIP

< Back

L126 x W38 x H25 mm

WT: 0.08 kg

Questions Order a Sample
Product description
Independent isolated adjustable adjustable power LED driver
Support DALI-2, Push Dimming
Flicker-free LED driver
DIP control adjusts the current
Output current 100…250 mA by DIP Switch adjust
Max. output power 10 W
Constant lumen output (CLO)
For luminaires with protection class l, ll
5 years warranty
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:N/A
DC operation voltage range:N/A
Safety frequency range:0/50/60 Hz
Rated input current:0.055 A @ 230 Vac
THD:< 10%
Inrush current:11.9 A, 160 μs
MCB Quantity B10A:55
MCB Quantity C10A:93
MCB Quantity B16A:89
MCB Quantity C16A:149
Output current tolerance:

± 5%

Output voltage max.≤ 55 Vdc
Ripple:5% (ripple = peak/average total 100 Hz)
Standby power consumption:≤ 0.3 W
Output PstLM:≤1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2, push dimming
Dimming range:1％...100％
Adjustable output current:DIP
Withstand voltage:

I/P-O/P: 3 kVac, < 5 mA 60 sec, I/P-DA: 1.5 kVac, O/P-DA: 1.5 kVac

Product nameOutput currentInput


               voltage		Output

               voltage		Efficiency
               @full load		Current accuracyPower factor
ID ECSCI 10/230/100-250 DALI DIP100...250 mA

220...240 Vac

220...240 Vdc

21...40 V84%± 5%0.9


Operating temperature-20…+50°C
Storage temperature:-25…+85°C
Working humidity:10%…90%
Store humidity:5%...90%
Driver lifetime:at Tc 75°C: 50,000 hrs; at Tc 65°C: 100,000 hrs; @ 230 Vac
Maximum Tc temperature:75°C
Pcs./ carton50 pcs.
Carton size265 x 200 x 160 mm
Gross weight4.35 kg
