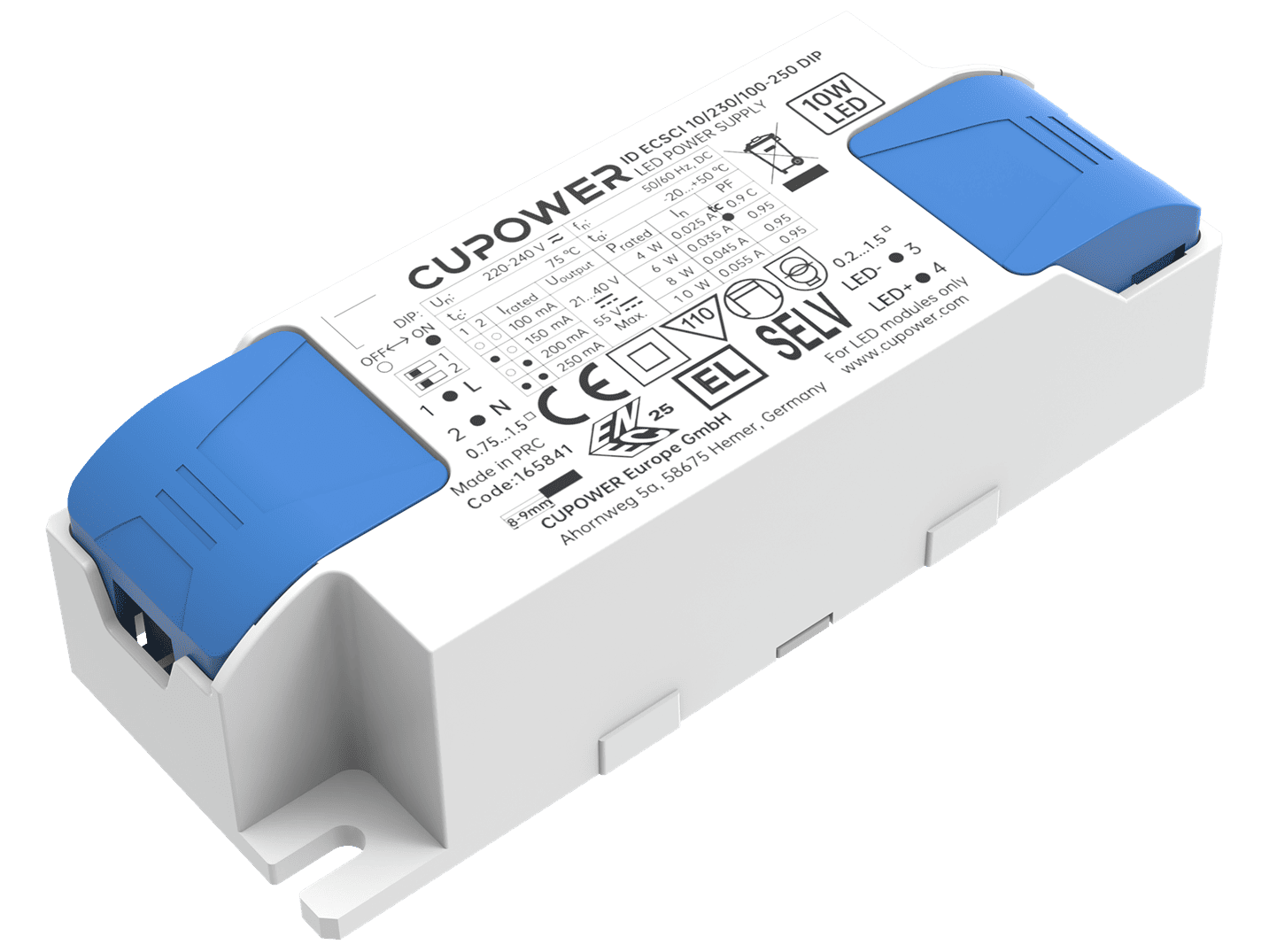

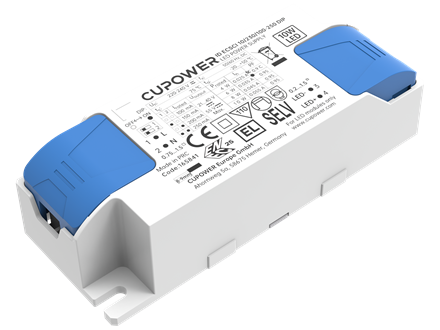

165841 ID ECSCI 10/230/100-250 DIP

< Back

L93 x W36 x H24.5 mm

WT: 0.055 kg

Questions Order a Sample
Product description
Flicker-free LED driver
Output current 100 ... 250 mA by DIP switch adjust
DC emergency
Max. output power 10 W
Current output default value 100 mA
For luminaires with protection class l, ll
5 years warranty
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176…280 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.055 A @ 230 Vac
THD:< 20%
Inrush current:14.8 A, 138 μs
MCB Quantity B10A:52
MCB Quantity C10A:87
MCB Quantity B16A:84
MCB Quantity C16A:140
Output current tolerance:

± 5%

Output voltage max.≤ 55 Vdc
Ripple:5% (ripple = peak/average total 100 Hz)
Standby power consumption:N/A
Output PstLM:≤1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:DIP
Withstand voltage:

l/p-O/p: 3.75 kVac, < 5 mA 60 sec

Product nameOutput currentInput


               voltage		Output

               voltage		Efficiency
               @full load		Current accuracyPower factor
ID ECSCI 10/230/100-250 DIP100...250 mA

220...240 Vac

220...240 Vdc

21...40 V86%± 5%0.95


Operating temperature-20…+50°C
Storage temperature:-25…+85°C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc 75°C: 50,000 hrs; at Tc 65°C: 100,000 hrs; @ 230 Vac
Maximum Tc temperature:75°C
Pcs./ carton80 pcs.
Carton size385 x 190 x 130 mm
Gross weight4.6 kg
  • Download
