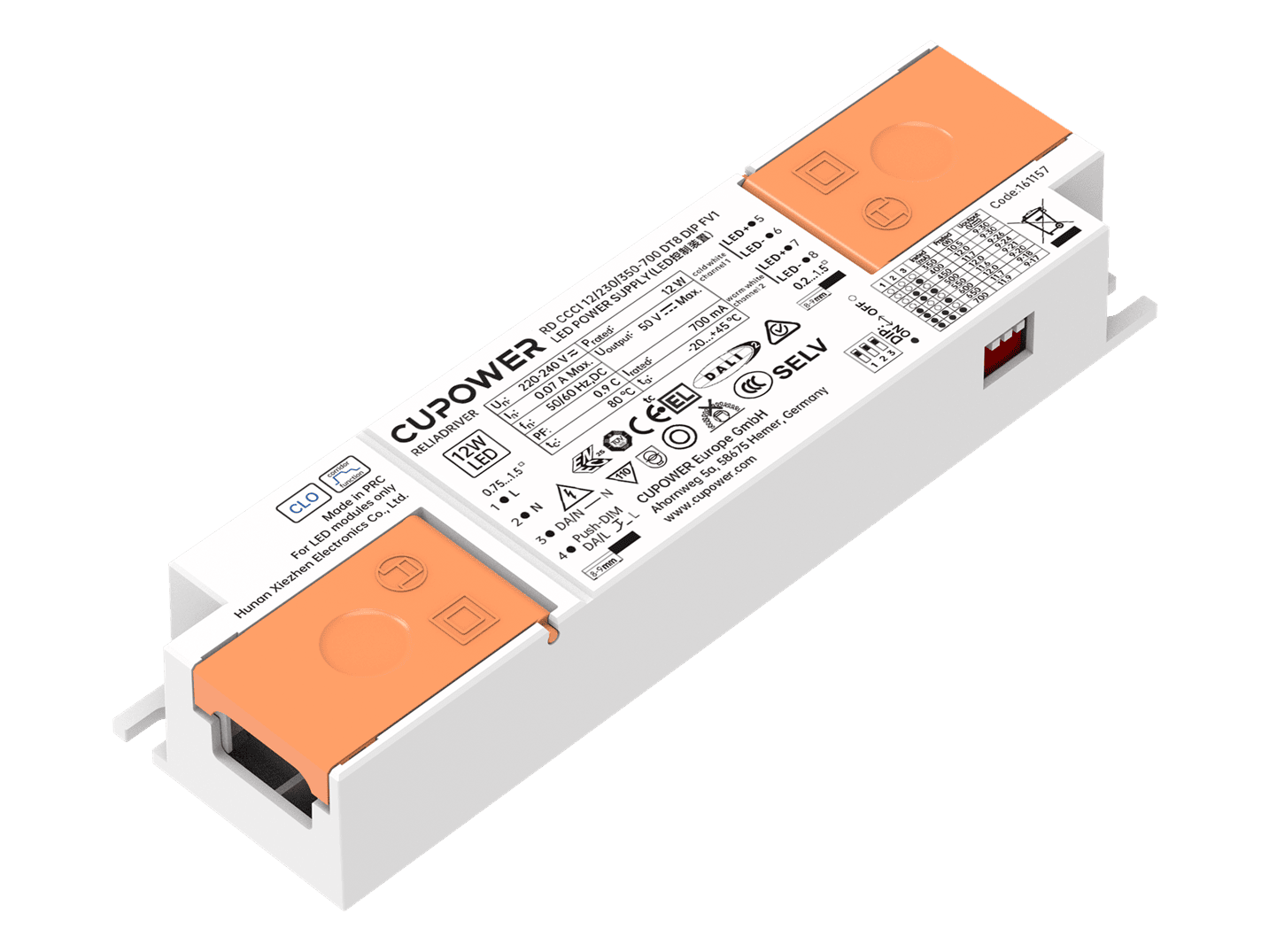

161157 RD CCCI 12/230/350-700 DT8 DIP FV1

< Back

L133 x W38 x H21 mm

WT: 0.071 kg

Questions Order a Sample
Product description
Isolated adjustable power color temperature LED driver
Support DALI-2, Push Dimming
Output current 350… 700 mA by DIP Switch adjust
Current output default value 100%
Max. output power 12 W
For luminaries of protection class l, ll
5-year warranty
DC emergency
Constant lumen output(CLO)
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:198...278 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.07 A @ 230 Vac & 0.07 A @ 230 Vdc
THD:< 10% at rated input voltage range @ full load
Inrush current :Inrush current lpeak: 4.77A, Inrush current Twidth: 35 μs
MCB Quantity B10A:127
MCB Quantity C10A:127
MCB Quantity B16A:203
MCB Quantity C16A:203
Output current tolerance :± 5%
Output voltage max：50 Vdc
Ripple:5%
Standby power consumption:< 0.5 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2，Push Dimming
Dimming range:/
Adjustable output current:DIP
Withstand voltage:I/P-O/P: 3.75 KVac,＜ 5 mA 60 sec, I/P-DA: 1.5 KVac,＜5 mA 60 sec；O/P-DA: 1.5 KVac,＜ 5mA 60 sec
Product nameOutput currentInput
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
RD CCCI 12/230/350-700 DT8 DIP FV1350...700 mA

220...240 Vac

220...240 Vdc

9...30 V

84.5% (@ 30

V 400 mA)

81.5% (@ 30

V 700 mA)

± 5%

> 0.9 (Output

power

> 6.2 W @ 230

Vac 50 Hz)


Operating temperature:-20…+45°C
Storage temperature:-40…+85°C
Working humidity:10%…90%
Store humidity:5%...95 %
Driver lifetime:at Tc < 80°C: 50,000 hrs; at Tc 70°C: 100,000 hrs @230 Vac (0.2% / 1,000 h failure rate)
Maximum Tc temperature:80°C
Pcs./ carton:86 pcs
Carton size:352 x 276 x 138 mm
Gross weight:6.77 kg
