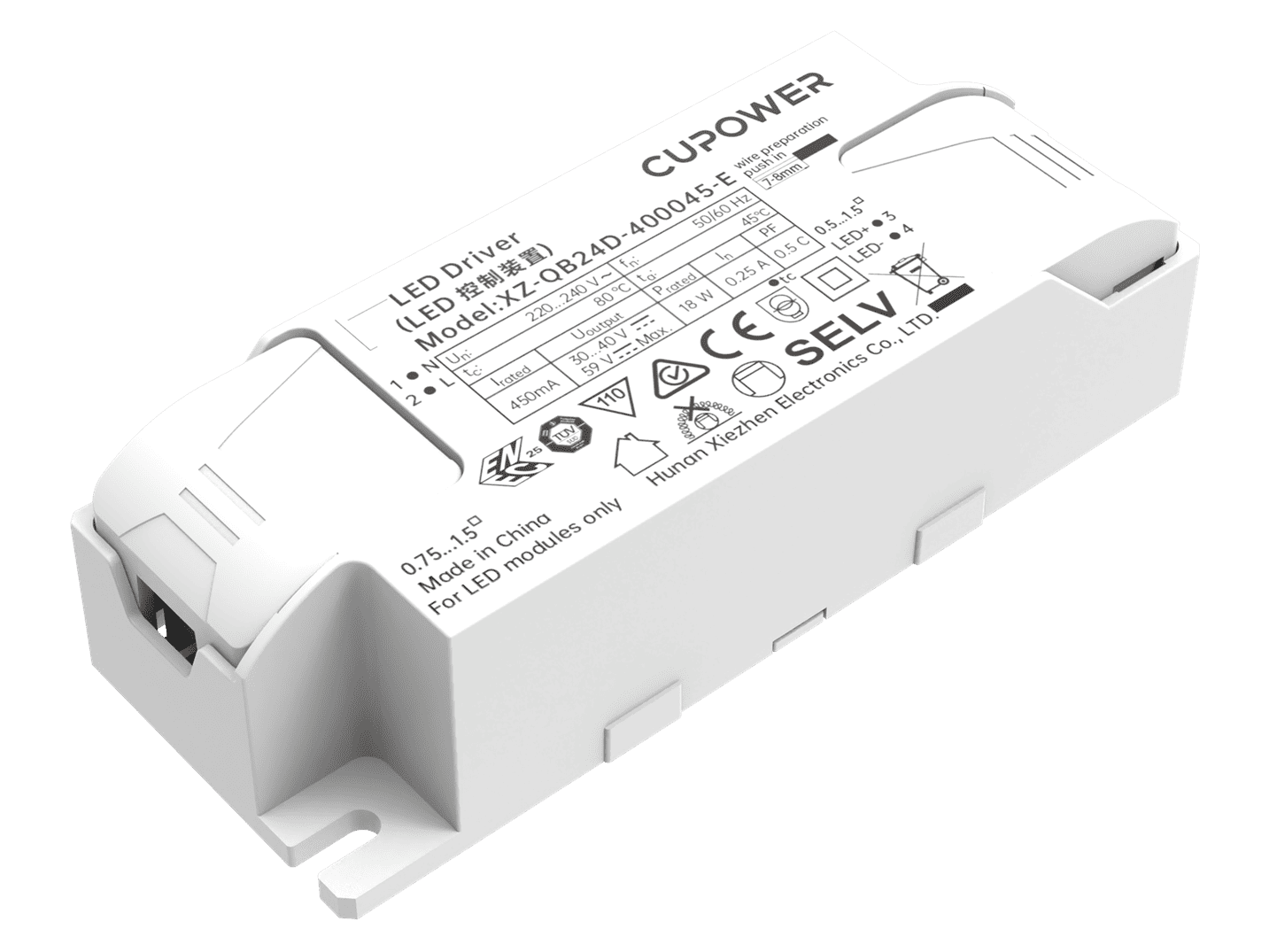

161881 XZ-QB24D-400045-E

< Back

L93 x W36 x H24.5 mm

WT: 0.052 kg

Questions Order a Sample
Product description
• SELV power supply
• High power factor, suitable for Class II luminaires
• Flicker-free
• Push terminal design, easy to install
• Meets ErP energy efficiency certification
• Suitable for Class II luminaires
• For 1.5 mm² wiring on primary and secondary side
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:N/A
DC operation voltage range:N/A
Safety frequency range:50/60 Hz
Rated input current:0.25 A @ 230 Vac
THD:N/A
Inrush current [Aµs]:Inrush current lpeak: 12.9 A、Inrush current Twidth: 120 μs
MCB Quantity B10A:43
MCB Quantity C10A:71
MCB Quantity B16A:68
MCB Quantity C16A:114
Output current tolerance:

± 5%

Output voltage max:59 Vdc
Ripple:≤ 5%
Standby power consumption:N/A
Output PstLM:< 1 at full load @ rated input voltage
Output SVM:< 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:DIP
Withstand voltage:

I/P-O/P: 3.75 KVac,＜ 5 mA 60 sec

Product nameOutput currentInput
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
XZ-QB24D-400045-E450 mA

220...240 Vac

30...40 V87%± 5%> 0.9


Operating temperature:-20…+45°C
Storage temperature:-40…+80℃
Working humidity:10%…90%
Store humidity:5%...90%
Driver lifetime:at Tc < 80°C: 30,000 hrs; at Tc 70°C: 50,000 hrs @230 Vac
Maximum Tc temperature:80°C
Pcs./ carton:80 pcs
Carton size:385 x 190 x 130 mm
Gross weight:4.56 kg
