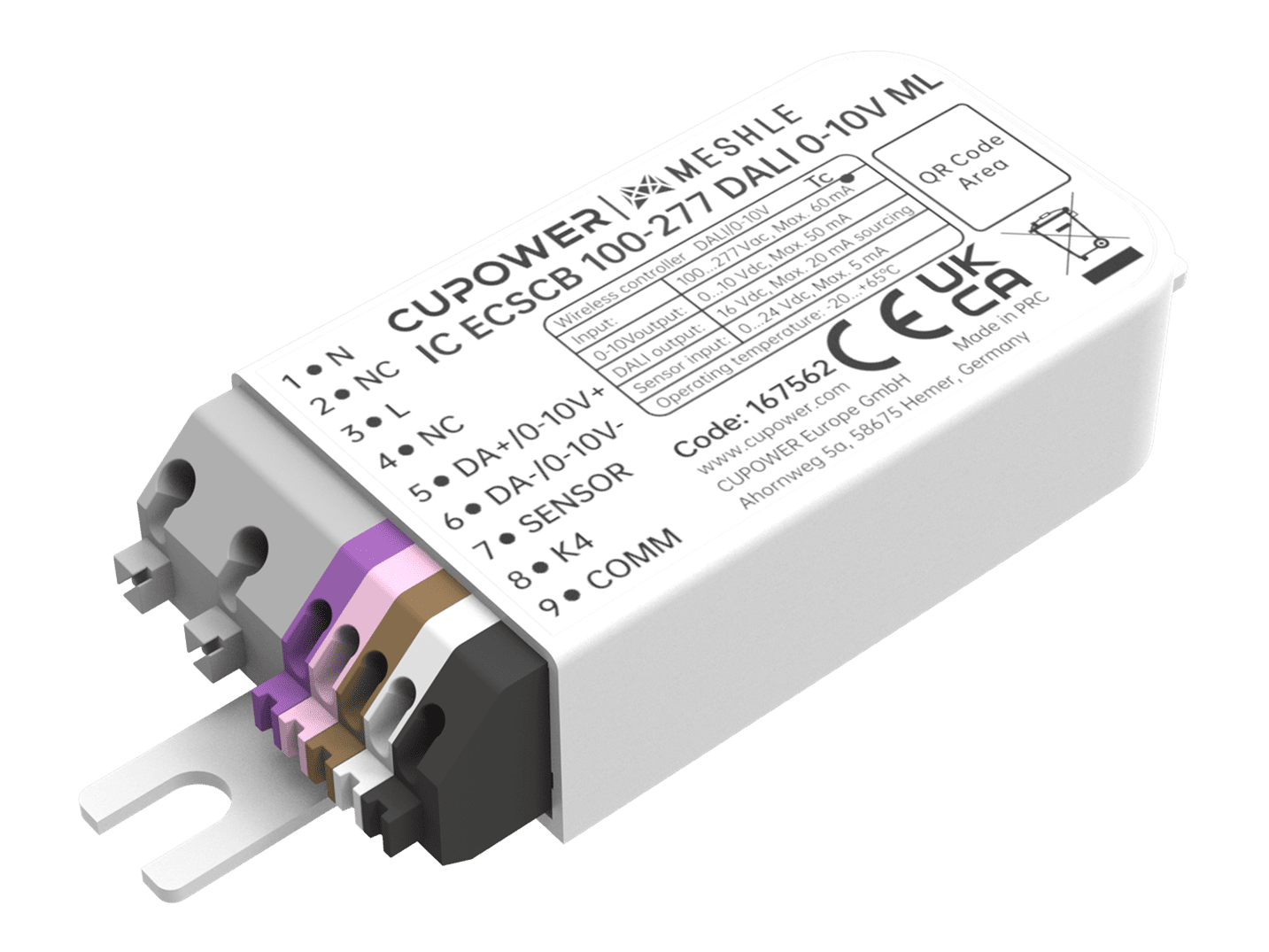

167562 IC ECSCB 100-277 DALI 0-10 V ML

< Back

L80.7 x W30 x H15 mm

WT: 0.022 Kg

Questions Order a Sample
Product description
Bluetooth-controlled Meshle-enabled
Wide voltage 100...277 Vac input
One-channel 0-10V controller
Dali-2 controller for individual control of up to 4 DALI groups
12...24 Vdc input for a motion sensor
Button push dimming
Utilizes bluetooth mesh technology for reliable and secure wireless communication
5 years warranty
ML = Meshle
Swipe for more
Rated input voltage range:100...277 Vac
Max.input voltage range:

0.05 A @ 100 Vac

RF transmit power:+ 8 dBm
Wireless frequency:2.4 GHz
Wireless range (open air):50 m
Output voltage 0-10V:0...10 Vdc
Output voltage DALI:12...16 Vdc
Output current DALI:20 mA
Max 0-10V sinking current:50 mA


Product nameInput
               voltage		DALI0-10V
IC ECSCB 100-277 DALI 0-10 V ML

100-277 Vac

12-16 V 20 mA0-10 V 50 mA


Operating temperature:-20…+65 ℃
Storage temperature:-25…+85 ℃
Working humidity:0 %…80 %
Store humidity:0 %…95 %
Driver lifetime:at Tc 75 ℃: 50,000 h @ 100 Vac
Maximum Tc temperature:75 ℃
Pcs./ carton:72 Pcs
Carton size:193 x 172 x 111 mm
Gross weight:1.9 kg
