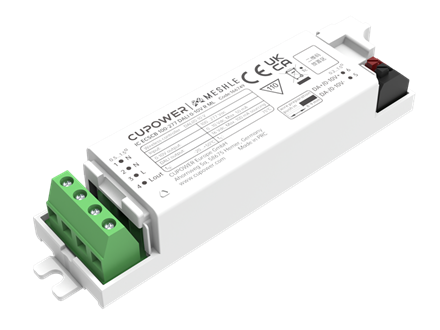

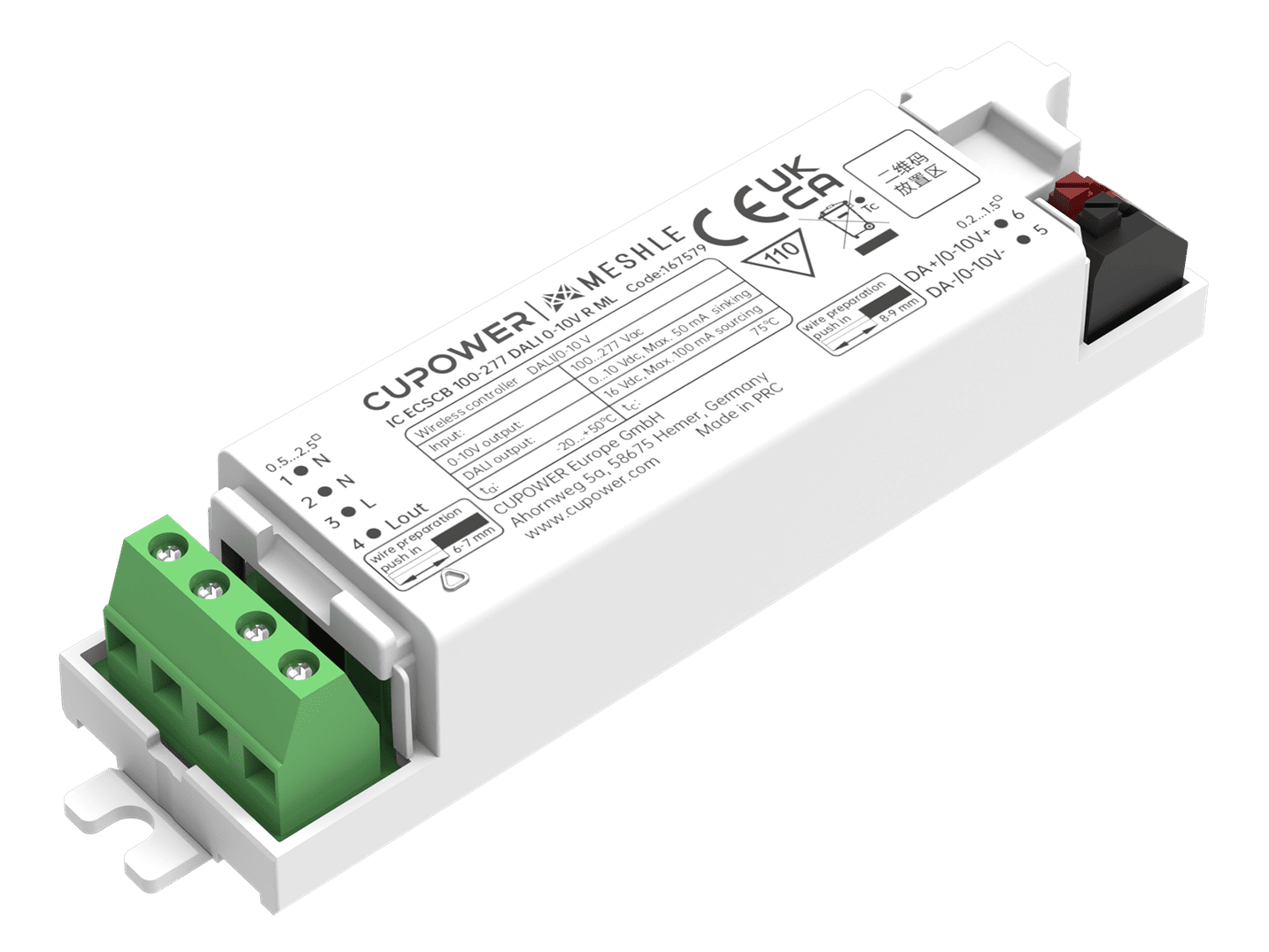

167579 IC ECSCB 100-277 DALI 0-10 V R ML

< Back

L105 x W29 x H21 mm

WT: 0.046 Kg

Product description

Bridge between DALI / 0-10 V systems and wireless solutions
Long-range, one-channel 0-10 V / DALI 2 controller
Bluetooth-controlled Meshle-enabled
Relay with zero-crossing, carries a maximum current of 10 A
5 years warranty

Swipe for more

Rated input voltage range:	100...277 Vac
Max.input voltage range:	0.06 A @ 100 Vac
RF transmit power:	+ 8 dBm
Wireless frequency:	2.4 GHz
Wireless range (open air):	50 m
Output voltage 0-10V:	0...10 Vdc
Output voltage DALI:	12...16 Vdc
Output current DALI:	100 mA
Relay control:	10 A Max

Product name	Input voltage	DALI	0-10 V
IC ECSCB 100-277 DALI 0-10 V R ML	100-277 VAC	12-16 V 50 mA	0-10 V 50 mA

Operating temperature:	-20…+50 ℃
Storage temperature:	-25…+85 ℃
Working humidity:	0 %…80 %
Store humidity:	0 %…95 %
Driver lifetime:	at Tc 75 ℃: 50,000 h @ 100 Vac
Maximum Tc temperature:	75 ℃

Pcs./ carton:	60 pcs
Carton size:	313 x 177 x 147 mm
Gross weight:	2.4 kg

Select all
3D_IC_ECSCB_100-277_DALI_0-10 V_R_ML
Download

Select all
CE_Declaration_of_Conformity_AC_DALI_0-10V_to_wireless_controller
Download
