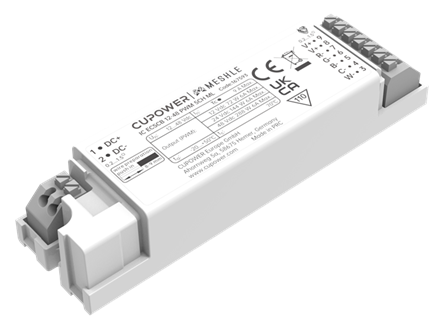

167593 IC ECSCB 12-48 PWM 5CH ML

< Back

L111.3 x W29.0 x H21.0 mm

WT: 0.032 Kg

Product description

The maximum combined output current is 9 A which can be freely divided between 1-5 channels (Max 6A/ch)
Supports five channel PWM dimming control
Integrated wireless module for wireless ecosystem
5 year warranty

Swipe for more

Rated input voltage range:	12…48 Vdc
Max. Input Current:	9 A
RF transmit power:	+ 8 dBm
Wireless frequency:	2.4 GHz
Wireless range (open air):	50 m
Input voltage:	12-24 Vdc

Product name	Input voltage	Channel	Output current
IC ECSCB 12-48 PWM 5CH ML	12-48 Vdc	5	9 A( 6 A)

Operating temperature:	-20...+50°C
Storage temperature:	-25...+85°C
Working humidity:	10%..90%
Store humidity:	5%...90%
Lifetime:	at Tc 70°C: 50,000 hrs
Maximum Tc temperature:	70°C
Moisture and Dust Rating:	IP20

Pcs./ carton:	60 Pcs
Carton size:	313 x 177 x 147 mm
Gross weight:	2.4 kg

Select all
3D_IC_ECSCB_12-48_PWM_5CH_ML
Download

Select all
CE_Declaration_of_Conformity_DC_5CH_PWM_wireless_controller
Download
