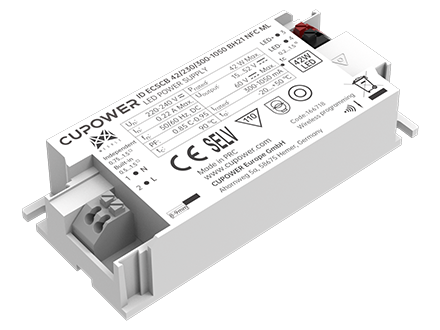

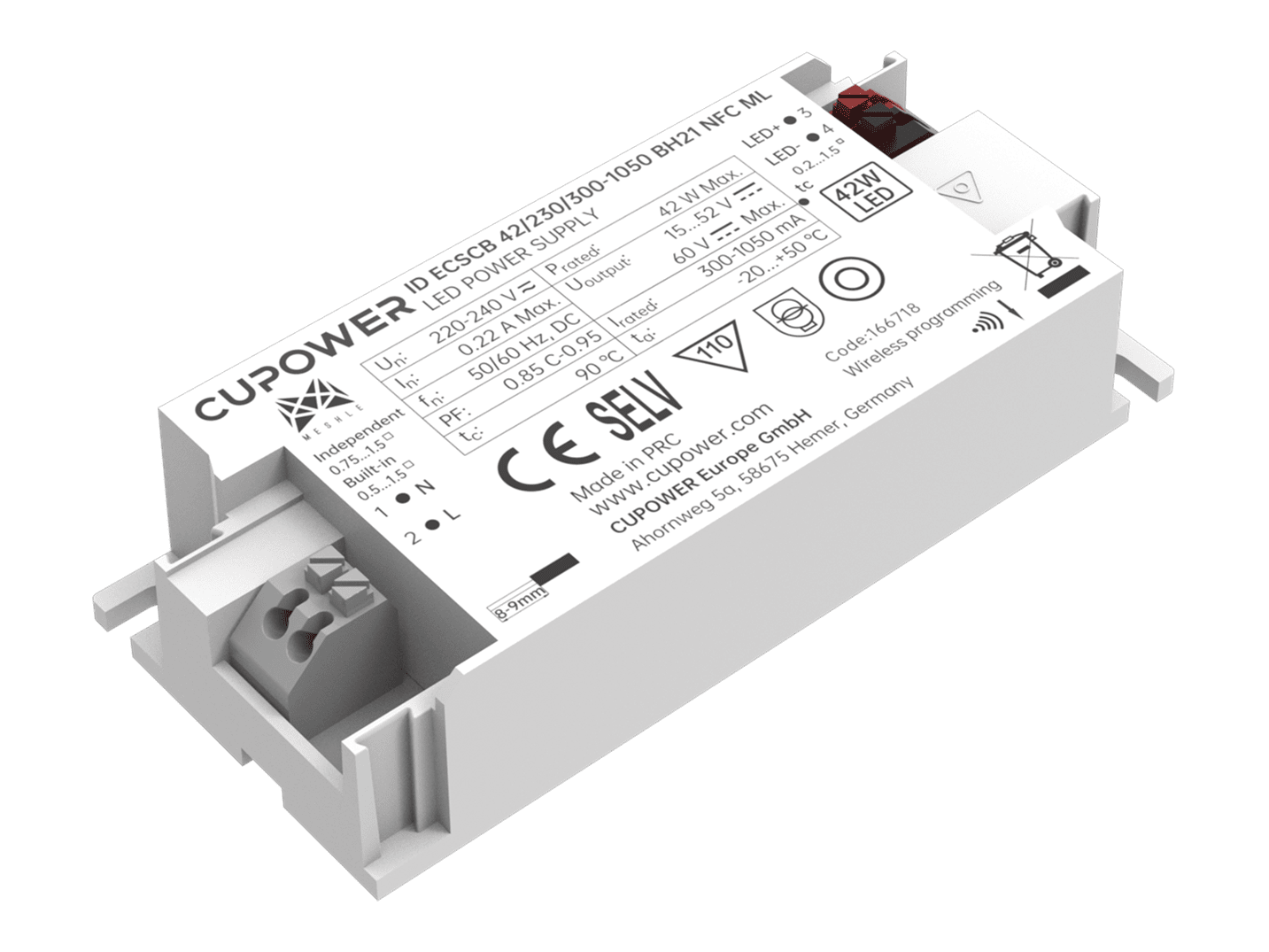

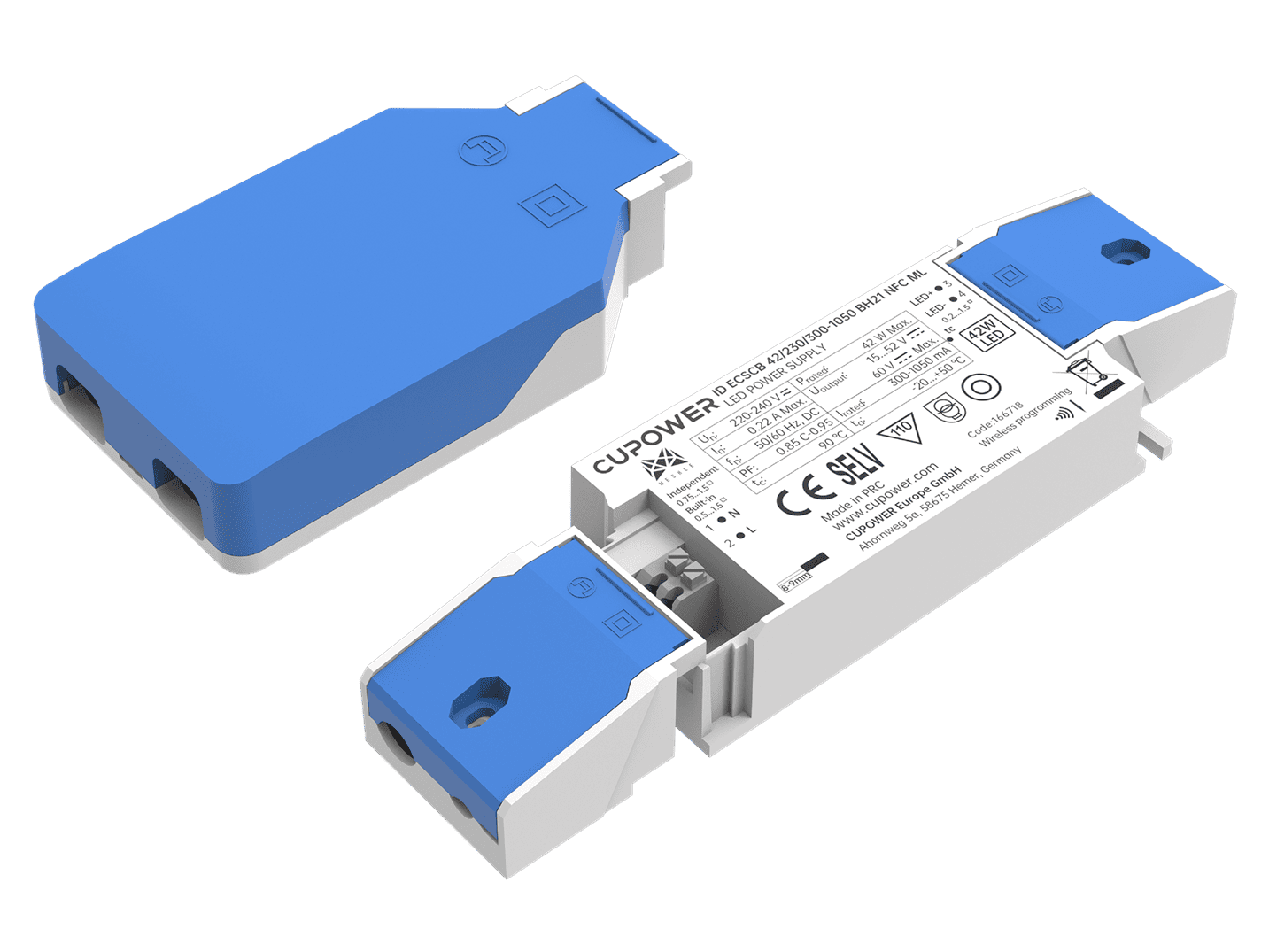

166718 ID ECSCB 42/230/300-1050 BH21 NFC ML

< Back

L97 x W43 x H21.4 mm

WT: 0.1 kg

Product description

Isolated adjustable power LED driver
Constant lumen output (CLO)
Current adjustment via NFC
Output current 300…1050 mA
Max. output power 42 W
DC emergency
Flicker-free, dimming range 1%...100% (amplitude dimming)
Current output default value 100%
For luminaires with protection class l, ll
Packing unit programming: configure a large number of drivers in parallel via NFC

Swipe for more

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.24 A @ 230 Vac & 0.24 A @ 230 Vdc
THD:	≤ 10%
Inrush current [Aµs]:	15.6 A, 248 us
MCB Quantity B10A:	26
MCB Quantity C10A:	43
MCB Quantity B16A:	43
MCB Quantity C16A:	70
Output current tolerance:	± 5%
Output voltage max.:	60 Vdc
Ripple:	5%
Standby power consumption:	≤ 0.3 W
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	Bluetooth mesh dimming
Dimming range:	1%...100%
Adjustable output current:	NFC
Withstand voltage:	I/p-O/p: 3 kVac, < 5 mA 60 sec, I/p-Da: 1.5 kVac, < 5 mA 60 sec, O/p-Da: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ECSCB 42/230/300-1050 BH21 NFC ML

300...1050 mA

220...240 Vac

220...240 Vdc

15...52 V

92%

± 5%

0.9

Operating temperature:	-20...+50℃
Storage temperature:	-25...+85℃
Working humidity:	10%...90%
Store humidity:	5%...90%
Driver lifetime:	at Tc 85℃: 50,000 hrs @ 230 Vac
Maximum Tc temperature:	90℃
