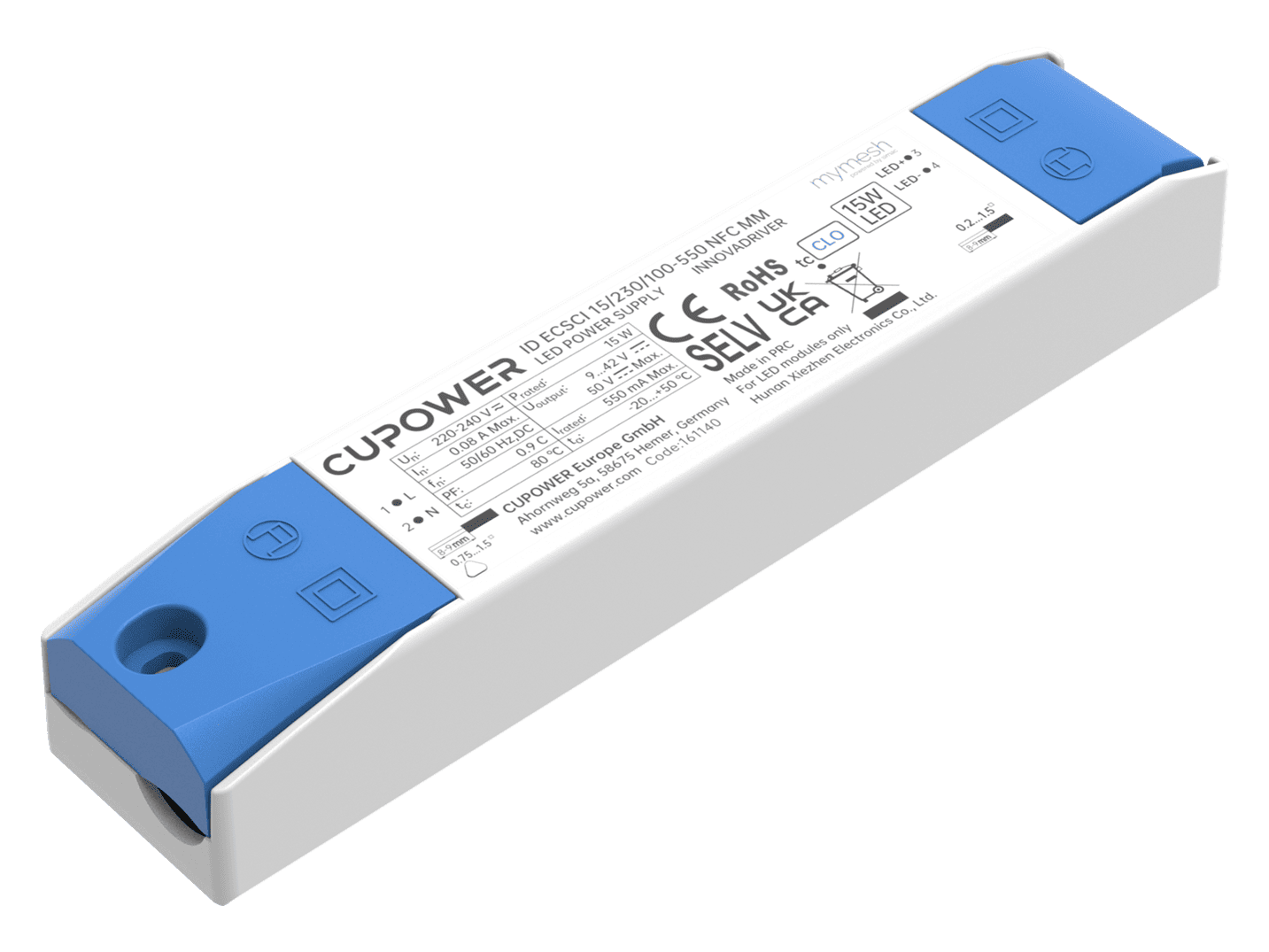

169269 ID ECSCI 15/230/100-550 NFC MM

< Back

L140 x W30 x H21 mm

WT: 0.057 kg

Product description

Isolated adjustable power LED driver
Constant lumen output (CLO)
Current adjustment via NFC
Output current 100 … 550 mA
Max. output power 15 W
DC emergency
Flicker-free, dimming range 1 … 100 % (amplitude dimming)
Current output default value 100 %
For luminaires with protection class l, ll
Packing unit programming: configure a large number of drivers in parallel via NFC
Anti-glow

Swipe for more

Rated input voltage range:	220 … 240 VAC
Max.input voltage range:	198 … 264 VAC
Rated input current DC range:	220 … 240 VDC
DC operation voltage range:	176 … 276 VDC
Safety frequency range:	0/50/60 Hz
Rated input current:	0.08 A @ 230 VAC & 0.08 A @ 230 VDC
THD:	15 %
Inrush current:	9.5 A, 155μs
MCB Quantity B10A:	72
MCB Quantity C10A:	106
MCB Quantity B16A:	115
MCB Quantity C16A:	170
Output current tolerance:	± 5 % at rated input voltage range
Output voltage max.:	≤ 50 VDC
Ripple:	5% (ripple = peak/average total 100 Hz)
Standby power consumption:	˂ 0.5 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	Bluetooth mesh dimming
Dimming range:	1 … 100 % (3.5 … 550 mA)
Adjustable output current:	NFC
Withstand voltage:	I/p-O/p: 3 kVAC,< 5 mA 60 s

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ECSCI 15/230/100-550 NFC MM

100 … 550 mA

220 … 240 VAC

220 … 240 VDc

9 … 42 V

86 %

± 5 %

0.9 (Output Power > 7 W)

Operating temperature:	-20 … +50 ℃
Storage temperature:	-25 … +85 ℃
Working humidity:	10 … 90 %
Storage humidity:	5 … 95 %
Driver lifetime:	at Tc 80 ℃: 50,000 h @ 230 Vac (0.2 % / 1,000 h failure rate)
Maximum Tc temperature:	80 ℃
