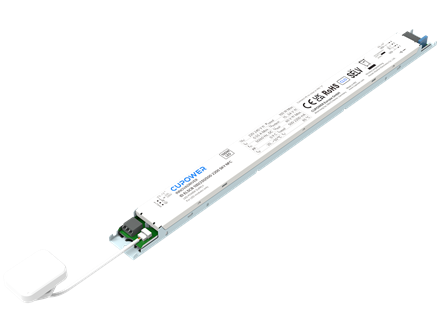

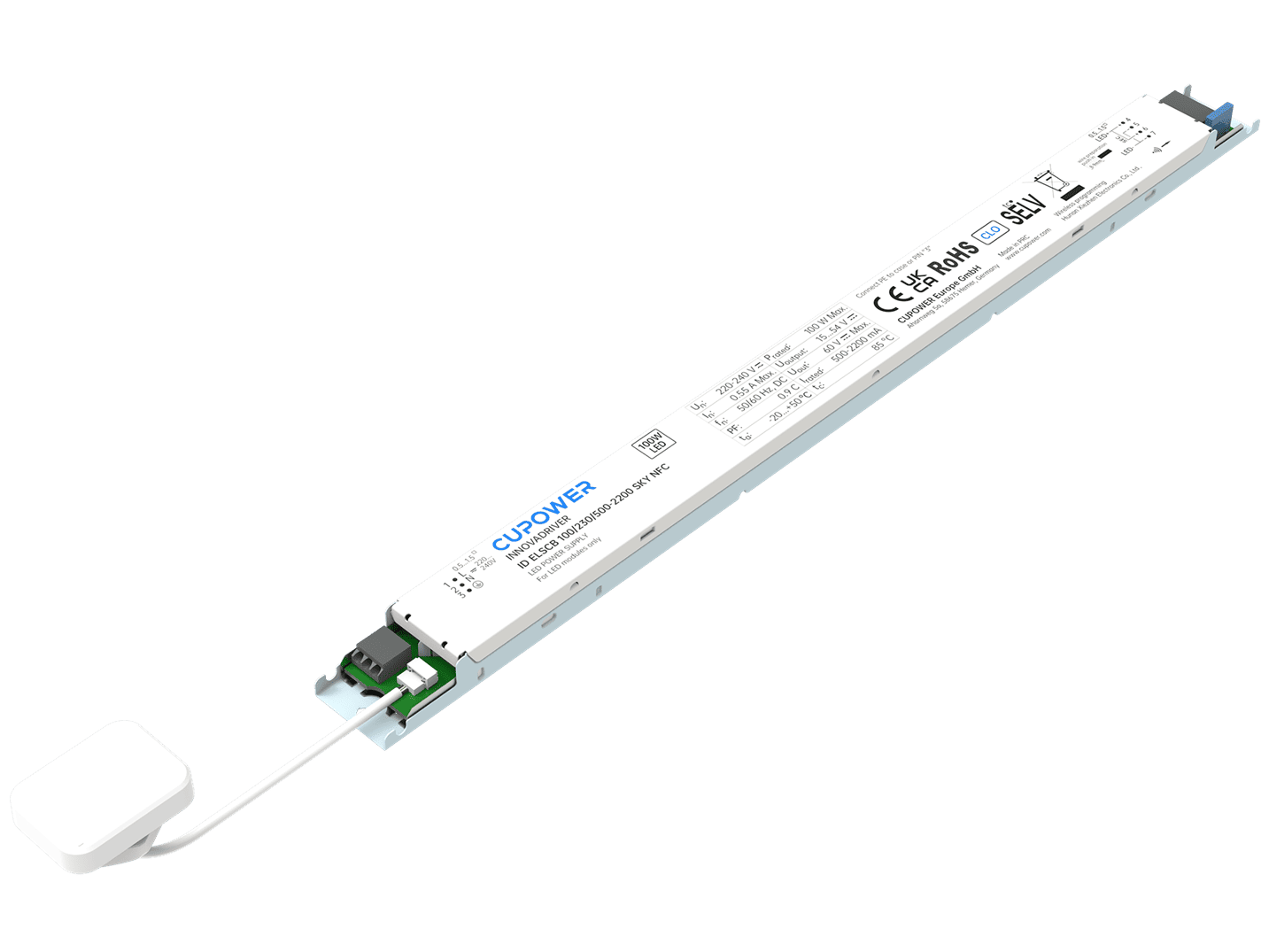

110755 ID ELSCB 100/230/500-2200 SKY NFC

< Back

L405 x W29.5 x H16 mm

WT: 0.267 kg

Product description

Built-in isolated adjustable power LED driver
Flicker-free LED driver
Current adjustment via NFC
Output current 500…2200 mA
Max. output power 100 W
DC emergency
Flicker-free, with a dimming range of 1...100% via Skylink.
Current output default value 100%
For luminaires with protection class l
Packing unit programming: configure a large number of drivers in parallel via NFC
The external antenna must be ordered separately
5 years warranty

Swipe for more

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
DC Rated input voltage range:	220...240 Vdc
DC operation voltage range:	176...280 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.55 A@ 230 Vac & 0.55 A @ 230 Vdc
THD:	≤ 10%
Inrush current [Aµs]:	37.2 A, 295 μs
MCB Quantity B10A:	9
MCB Quantity C10A:	15
MCB Quantity B16A:	15
MCB Quantity C16A:	25
Output current tolerance:	± 5%
Output voltage max.:	60 V
Ripple:	5%
Standby power consumption:	< 0.4 W
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	BLE dimming
Dimming range:	1%...100%
Adjustable output current:	NFC
Withstand voltage:	l/p-O/p: 3.75 kVac, < 5 mA 60 sec; l/p-FG: 1.5 kVac, < 5 mA 60 sec; O/p-FG: 1.5 kVac, < 5 mA 60 sec;

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ELSCB 100/230/500-2200 SKY NFC

500...2200 mA

220...240 Vac

220...240 Vdc

15...54 V

90.5%

± 5%

0.9

Operating temperature:	-20...+55℃
Storage temperature:	-40...+85℃
Working humidity:	10%...90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 85°C: 50,000 hrs; at Tc 75℃: 100,000 hrs @ 230 Vac
Maximum Tc temperature:	85℃
