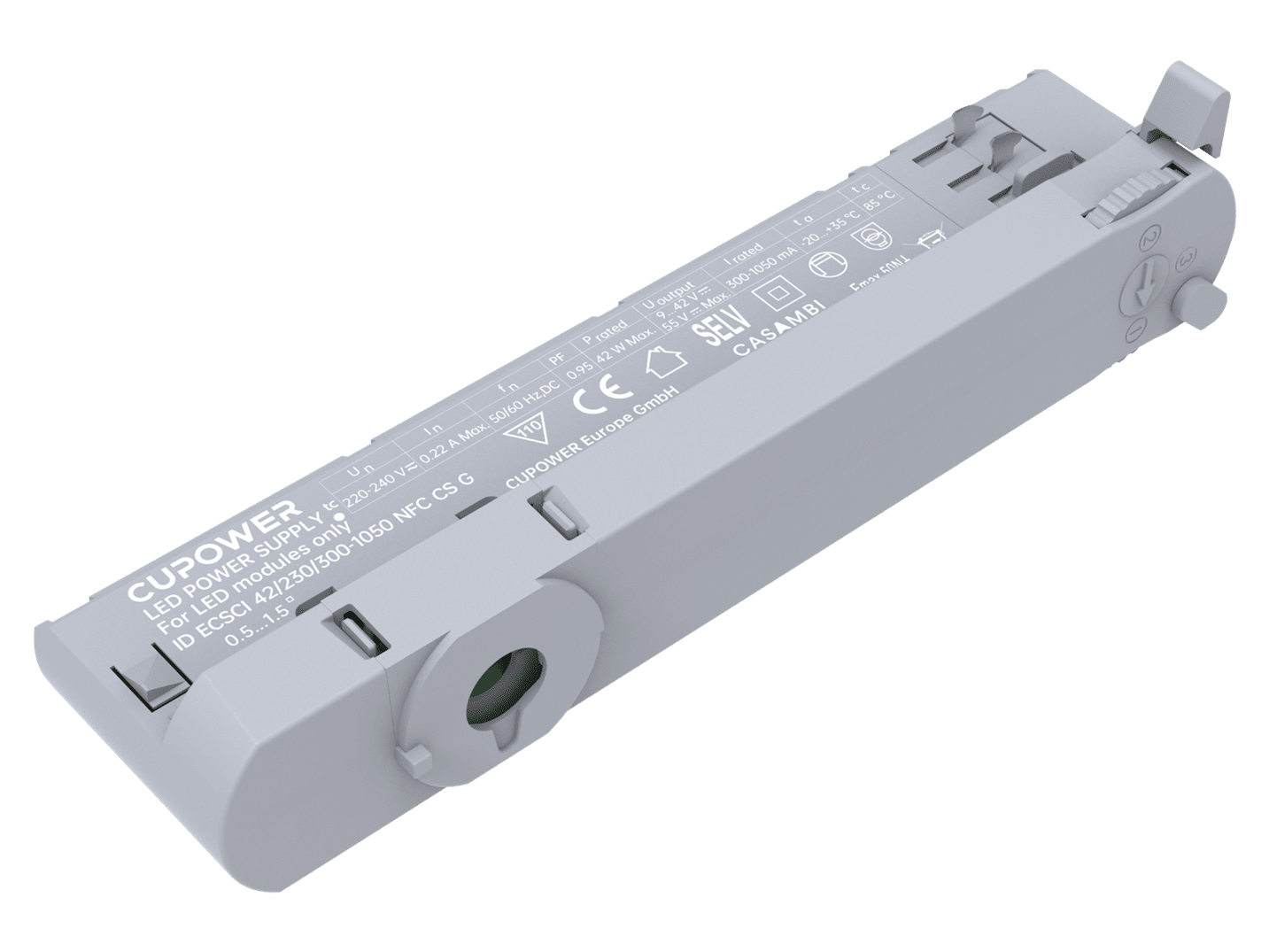

167494 ID ECSCI 42/230/300-1050 NFC CS G

< Back

L181.5 x W31.1 x H42.2 mm

WT: 0.125 kg

Product description

Isolated adjustable power LED driver
Current adjustment via NFC
Constant lumen output (CLO)
Output current 300…1050 mA
Max. output power 42 W
DC emergency
Flicker-free, dimming range 1%...100% (amplitude dimming)
Current output default value 100%
For luminaires with protection class ll

Swipe for more

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...280 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.22 A @ 230 Vac & 0.22 A @ 230 Vdc
THD:	≤ 10%
Inrush current [Aµs]:	27.5 A, 135 μs
MCB Quantity B10A:	28
MCB Quantity C10A:	37
MCB Quantity B16A:	46
MCB Quantity C16A:	59
Output current tolerance:	± 5%
Output voltage max.:	≤ 55 Vdc
Ripple:	5%
Standby power consumption:	< 0.4 W
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	AM dimming
Dimming range:	1%...100%
Adjustable output current:	NFC
Withstand voltage:	I/p-O/p: 3 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ECSCI 42/230/300-1050 NFC CS G

300...1050 mA

220...240 Vac

220...240 Vdc

9...42 V

89%

± 5%

0.9

Operating temperature:	-20...+35℃
Storage temperature:	-25...+85℃
Working humidity:	10%...90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 85℃: 50,000 hrs; at Tc 75℃: 100,000 hrs @ 230 Vac
Maximum Tc temperature:	85℃
