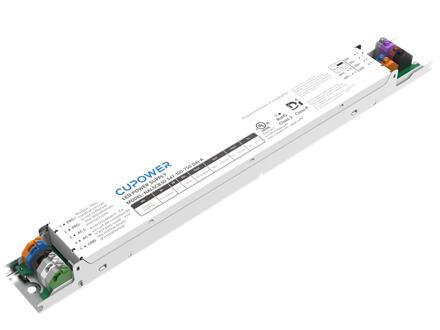

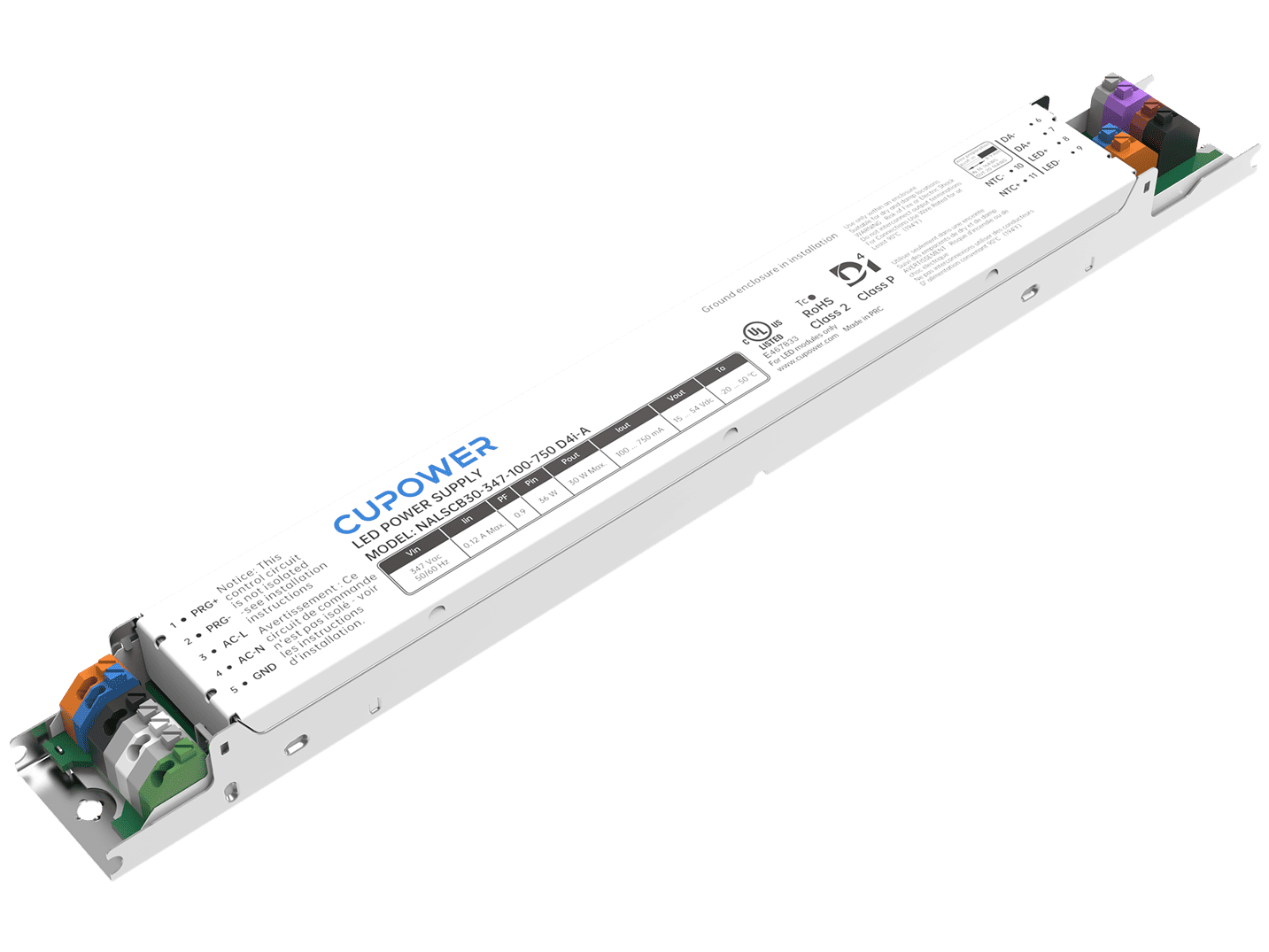

169030 NALSCB30-347-100-750 D4i-T

< Back

L10.94 x W1.18 x H0.83 in

WT: 0.209 kg

Product description

Isolated adjustable power LED driver
Support DALI dimming
Supports DALI-2 D4i (Part 250, 251, 252, 253)
Flicker-free LED driver
PRG port can externally connected DIP switch
Current adjustment via 2-wire programming
Output current 100…750 mA
Max. output power 30 W
Constant lumen output (CLO)
For luminaires with protection class I
5 years warranty

Swipe for more

Rated input voltage range:	347 Vac; performance range
Max.input voltage range:	312...382 Vac; operational safety range
Rated input current DC range:	N/A
DC operation voltage range:	N/A
Safety frequency range:	47…63 Hz
Rated input current:	0.12 A @ 347 Vac
THD:	≤ 20%
Inrush current [Aµs]:	N/A
MCB Quantity B10A:	N/A
MCB Quantity C10A:	N/A
MCB Quantity B16A:	N/A
MCB Quantity C16A:	N/A
Output current tolerance:	± 5% at rated input voltage range @ 100...200 mA ± 7%
Output voltage max:	≤ 60 Vdc
Ripple:	5% (ripple = peak/average total 100/120 Hz)
Standby power consumption:	< 0.5 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	D4i
Dimming range:	0.1-100 %
Adjustable output current:	One-burning programming
Withstand voltage:	I/p-O/p: 1.8 kVac, < 5 mA 60 s; I/p-FG: 1.8 kVac, < 5 mA 60 s I/p-DIM: 1.8 kVac, < 5 mA 60 s; DIM-FG: 0.6 kVac, < 5 mA 60 s O/p-FG: 0.6 kVac, < 5 mA 60 s

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
NALSCB30-347-100-750 D4i-T	100...750 mA	347 Vac	15...54 V	87%	± 5%	0.9

Operating temperature:	-20…+50°C
Storage temperature:	-25…+85°C
Working humidity:	5%…90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 85°C: 50,000 hrs
Maximum Tc temperature:	85°C
