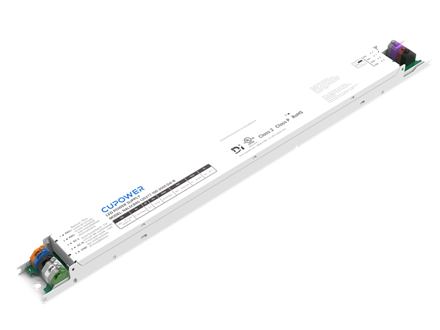

110045 NALSCB80-120277-100-2000 D4i-T

< Back

L14.17 x W1.18 x H0.83 in

WT: 0.32 kg

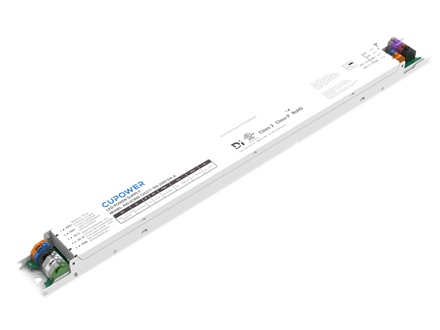

  • 新NALSCB80-120277-100-2000 D4i-A.-产品
Questions Order a Sample
Product description
Isolated adjustable power LED driver
Support DALI dimming
Supports DALI-2 D4i (Part 250, 251, 252, 253)
Flicker-free LED driver
PRG port can externally connected DIP switch
Current adjustment via 2-wire programming
Output current 100…2000 mA
Max. output power 80 W
Constant lumen output (CLO)
For luminaires with protection class I
5 years warranty
Swipe for more
Rated input voltage range:120…277 Vac; performance range
Max.input voltage range:108...305 Vac; operational safety range
Rated input current DC range:N/A
DC operation voltage range:N/A
Safety frequency range:47…63 Hz
Rated input current:0.78 A @ 120 Vac
THD:≤ 20%
Inrush current [Aµs]:N/A
MCB Quantity B10A:N/A
MCB Quantity C10A:N/A
MCB Quantity B16A:N/A
MCB Quantity C16A:N/A
Output current tolerance:± 5% at rated input voltage range @ 100...200 mA ± 7%
Output voltage max:≤ 60 Vdc
Ripple:5% (ripple = peak/average total 100/120 Hz)
Standby power consumption:< 0.5 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:D4i
Dimming range:0.1-100 %
Adjustable output current:One-burning programming
Withstand voltage:

I/p-O/p: 1.8 kVac, < 5 mA 60 s; I/p-FG: 1.8 kVac, < 5 mA 60 s I/p-DIM: 1.8 kVac, < 5 mA 60 s; DIM-FG: 0.6 kVac, < 5 mA 60 s O/p-FG: 0.6 kVac, < 5 mA 60 s

Product nameOutput
                 current		Input
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
NALSCB80-120277-100-2000 D4i-T100...2000 mA

120...277  Vac

15...54 V88%± 5%0.9


Operating temperature:-20…+50°C
Storage temperature:-25…+85°C
Working humidity:5%…90%
Store humidity:5%...95%
Driver lifetime:at Tc 90°C: 50,000 hrs
Maximum Tc temperature:90°C
Pcs./ carton:40 pcs
Carton size:14.8 x 12.2 x 4.5 in/377 x 310 x115 mm
Gross weight:12.6 kg
