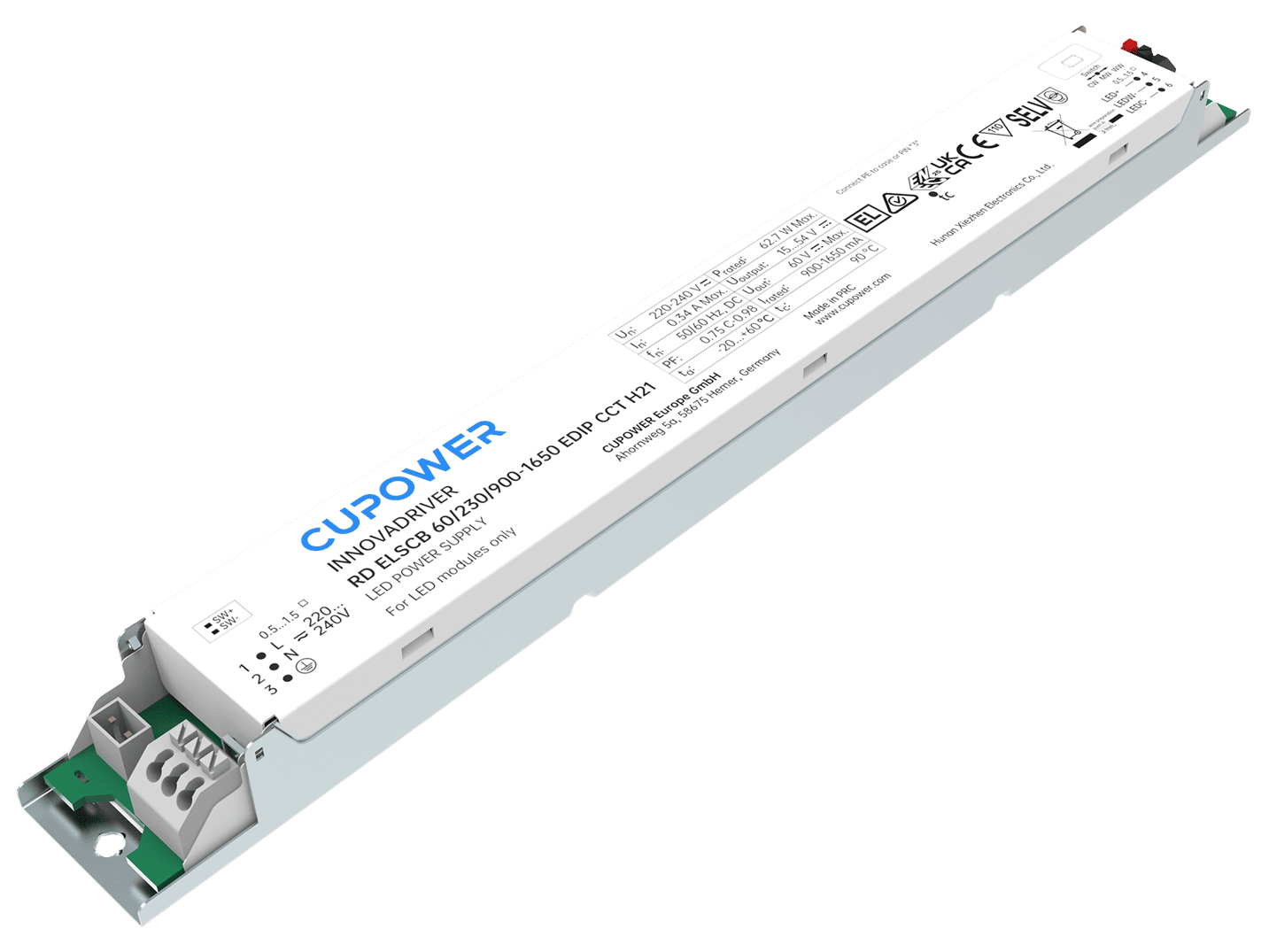

680062 RD ELSCB 60/230/900-1650 EDIP H21

< Back

L278 x W30 x H21 mm

WT: 0.191 kg

Questions Order a Sample
Product description
Built-in isolated adjustable power LED driver
Current adjustment via external DIP
Flicker free LED driver
Output current: 900 … 1650 mA
Max. output power 62.7 W
Nominal life-time up to 50,000 h
For luminaires with protection class l
DC emergency
5-year warranty
Swipe for more
Rated input voltage range:220 … 240 VAC
Max.input voltage range:198 … 264 VAC
Rated input current DC range:220 … 240 VDC
DC operation voltage range:198 … 280 VDC
Safety frequency range:N/A
Rated input current:0.32 A @ 230 VAC & 0.32 A @ 230 VDC
THD:< 10 %
Inrush current [Aµs]:34.8 A, 176 µs
MCB Quantity B10A:17
MCB Quantity C10A:26
MCB Quantity B16A:27
MCB Quantity C16A:42
Output current tolerance:± 5 % at rated input voltage range
Output voltage max:≤ 60 VDC
Ripple:5 % (ripple = peak/average total 100 Hz)
Standby power consumption:N/A
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:DIP switch
Withstand voltage:

l/p-O/p: 3 kVAC, < 5 mA 60 s, l/p-FG: 1.5 kVAC, < 5 mA 60 s, O/p-FG: 1.5 kVAC, < 5 mA 60 s

Product nameOutput
                 current		Input
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
RD ELSCB 60/230/900-1650 EDIP H21900 … 1650 mA

220 … 240 VAC

220 … 240 VDC

15 … 54 V90.5 %± 5 %> 0.95


Operating temperature:-20 … +60°C
Storage temperature:-20 … +85°C
Working humidity:10 … 90 %
Store humidity:5 ... 95 %
Driver lifetime:at Tc 80 °C: 50,000 h; at Tc 90 °C: 30,000 h  @ 230 VAC (0.2 % / 1,000 h failure rate);
Maximum Tc temperature:90 °C
Pcs./ carton:60 pcs
Carton size:375 x 325 x 185 mm
Gross weight:12 kg
