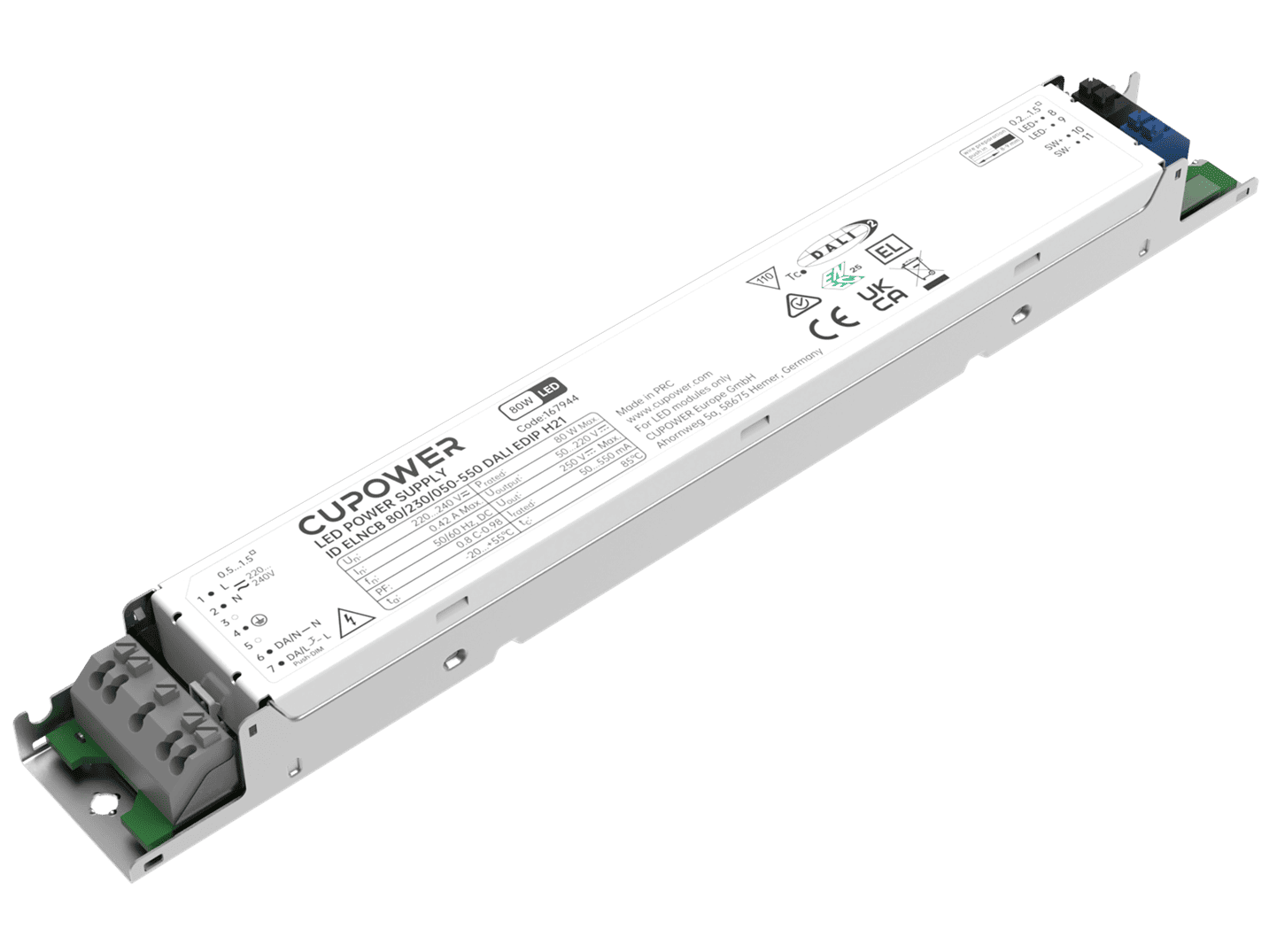

167944 ID ELNCB 80/230/050-550 DALI EDIP H21

< Back

L238 x W30 x H21 mm

WT: 0.17 kg

Product description

Built-in non isolated adjustable power LED driver
Supports DALI-2, push DIM
Flicker-free LED driver
Supports i-Data function (DALI part 251, 252, 253)
Output current adjustable from 50 to 550 mA via external DIP switch
The default output current is 50 mA
Max. output power 80 W
DC emergency
For luminaires with protection class l
5 years warranty

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176…280 Vdc
Safety frequency range:	47…63 Hz
Rated input current:	0.42 A @ 230 Vac & 0.42 A @ 230 Vdc
THD:	≤ 10%
Inrush current [Aµs]:	29 A、236 µs
MCB Quantity B10A:	15
MCB Quantity C10A:	20
MCB Quantity B16A:	24
MCB Quantity C16A:	33
Output current tolerance:	50 mA ±8%; 100...550 mA ±5%
Output voltage max:	≤250 Vdc
Ripple:	5%
Standby power consumption:	≤ 0.3 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2，Push Dimming
Dimming range:	1%~100%
Adjustable output current:	DIP switch
Withstand voltage:	Input to ground (l/p-FG): 1.5 kVac, < 5 mA, 60 sec Input to DALI (l/p-DA): 1.5 kVac, < 5 mA, 60 sec DALI to ground (DA-FG): 1.5 kVac, < 5 mA, 60 sec

Product name

Output
current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ELNCB 80/230/050-550 DALI EDIP H21

50...550 mA

220...240 Vac

220...240 Vdc

50...220V

94%

± 5%

0.95

Operating temperature:	-20…+50°C
Storage temperature:	-25…+85°C
Working humidity:	10%…90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 85°C: 50,000 hrs; at Tc 75°C: 100,000 hrs @ 230Vac
Maximum Tc temperature:	85°C
