166602 ID ELNCB 36/230/050-400 SKY NFC

< Back

L278 x W29.5 x H16 mm

WT: 0.157 kg

Product description

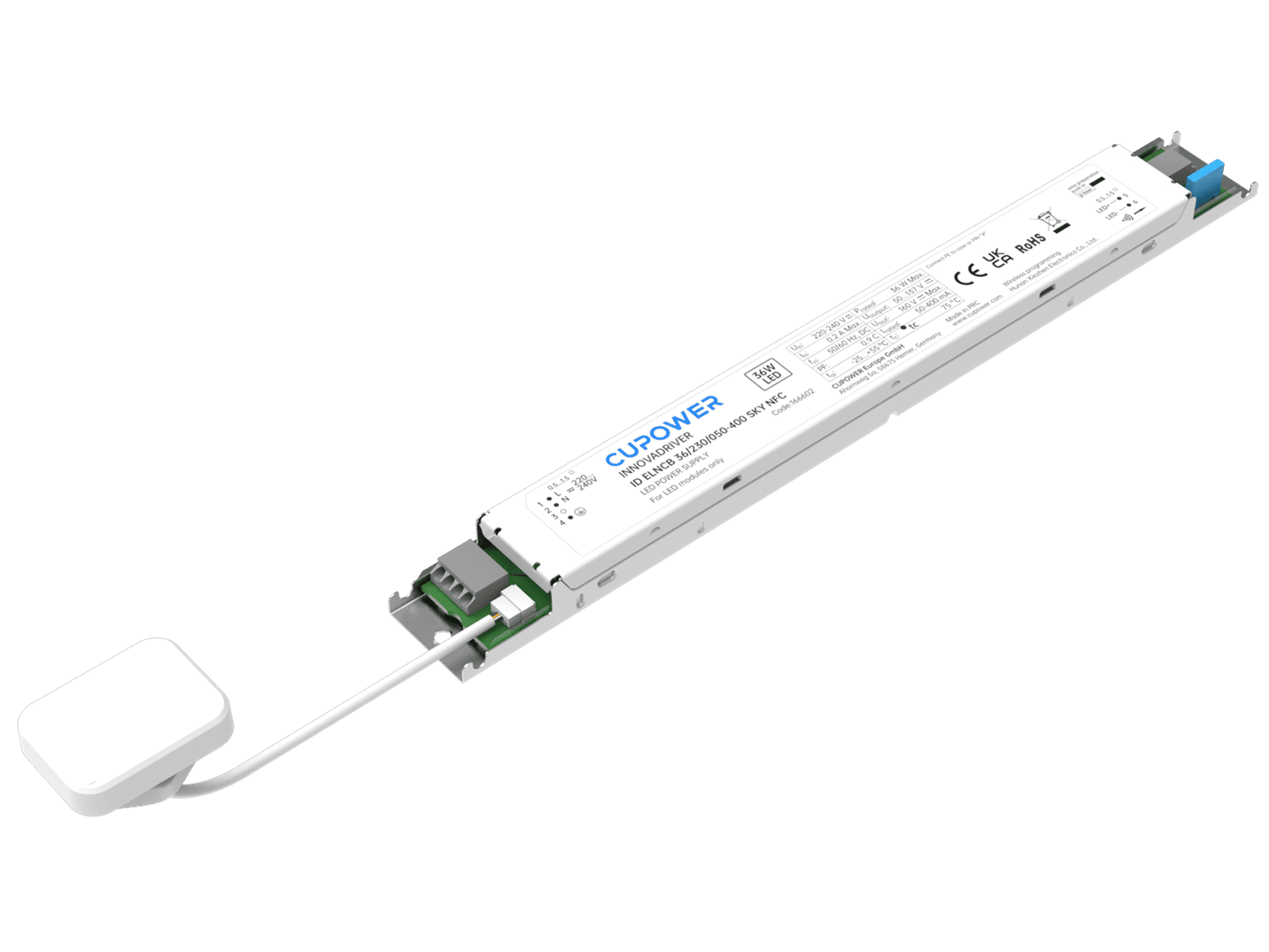

Built-in non isolated adjustable power LED driver
Current adjustment via NFC
Constant lumen output (CLO)
Output current 50…400 mA
Max. output power 36 W
DC emergency
Flicker-free, with a dimming range of 1...100% via an Skylink.
Current output default value 100%
For luminaires with protection class l
5 years warranty
With anti glow function
Packing unit programming: configure a large number of drivers in parallel via NFC
The external antenna must be ordered separately

Swipe for more

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
DC Rated input voltage range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.2 A @ 230 Vac & 0.2 A @ 230 Vdc
THD:	10%
Inrush current [Aµs]:	14.3 A, 254 us
MCB Quantity B10A:	17
MCB Quantity C10A:	29
MCB Quantity B16A:	28
MCB Quantity C16A:	46
Output current tolerance:	± 5%
Output voltage max.:	160 V
Ripple:	5%
Standby power consumption:	< 0.4 W
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	BLE dimming
Dimming range:	1%...100%
Adjustable output current:	NFC
Withstand voltage:	I/p-FG: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ELNCB 36/230/050-400 SKY NFC

50...400 mA

220...240 Vac

220...240 Vdc

50...137 V

90% (@ 137 V 260 mA)

± 5%

> 0.9

Operating temperature:	-20...+55℃
Storage temperature:	-25...+85℃
Working humidity:	10%...90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 75°C: 50,000 hrs @ 230 Vac; at Tc 65℃: 100,000 hrs @ 230Vac
Maximum Tc temperature:	75℃
